High Viscosity Tank Level Alarm Probe

High Viscosity Tank Level Alarm Probe
Product Code: SWS1040
Availability: In Stock
Prices from: £42.24 (inc VAT)
Ex VAT: £35.20

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

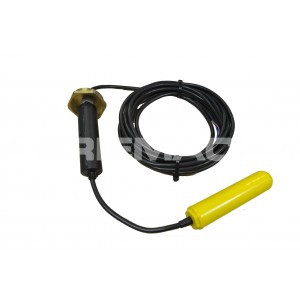

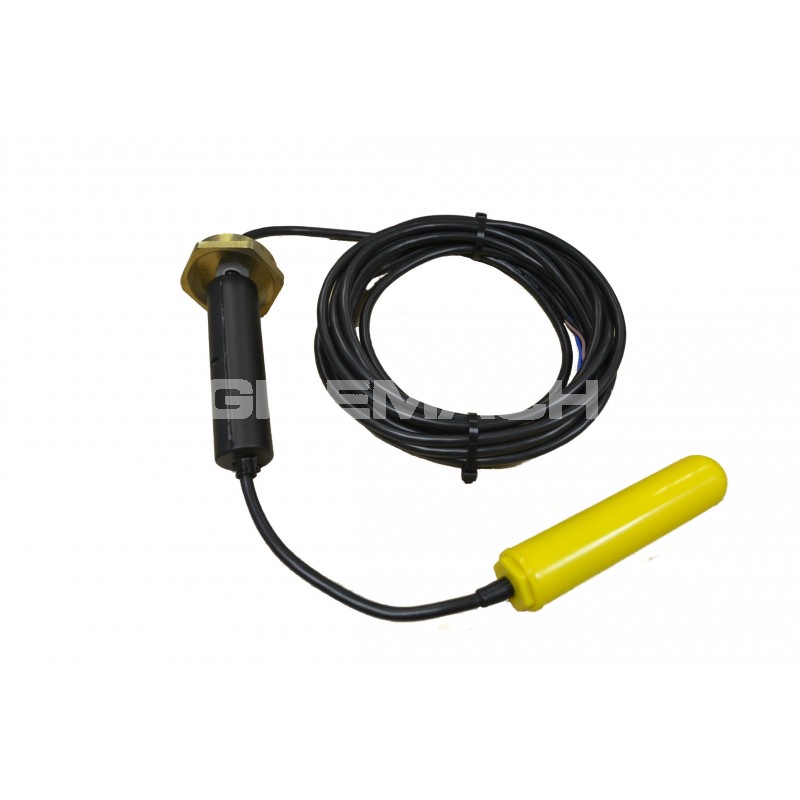

This single tank level alarm probe is designed for use with the CTS tank alarms to alert of a high or low level on tanks containing fluids with a high viscosity or containing debris. The primary use of this level switch is for use on waste oil tank alarms for containing oils that need recycling or disposing of in garage and workshop applications, as due to being encapsulated reliable cut off is ensured even with the presence of particles. The supplied weight can be attached to the cable at any desired length to adjust the switching height in high and bund applications.

The standard code for the tank alarm level probe is designed for use on steel tanks. Please see the accessories table for the kit required to adapt it for plastic tanks.

Features of the High Viscosity Tank Alarm Probe:

  • High/low tank level probe for viscous oils
  • 5m PVC cable
  • 1.5" F BSP Plastic cap & cable gland
  • 3 wire NO & NC Contacts
  • Polypropylene construction
  • Temp Range: 0°c - +60°c
  • Max Pressure 4.5kg/cm2
  • Switching angle (up = 18deg +/- 4deg,  down = 3deg +/- 3deg)
  • 3A max switching current
Code Product Description Price (excl VAT)
SWS1038 High Viscosity Fluid Tank Level Alarm Probe Alerts - High and Low
Cable - 5m PVC
Temperature - 0°c - +60°c
Connection - 1 1/2" F BSP Plastic Cap
For viscous fluids and waste oils
£96.52
SWS1040 Water & Chemical Tank Level Alarm Probe Alerts - High or Low
Cable - 5m PVC
Temperature - 20°c - +80°c
Connection - 1 1/2" F BSP Polyethylene Cap
£35.20
SWS1039 Oil Drum Level Probe Alerts - High
Cable - 5m PVC
Temperature - 20°c - +80°c
3/4" M BSPT Steel Drum
£44.80

Accessories

Code Accessory Price (excl VAT)
SWS1036 Plastic Tank Kit - For Single Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
£9.56
SWS1009 Extra Alarm Cable Per Metre Per Metre
£1.96
