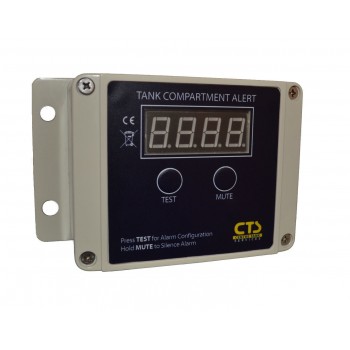

CTS Single Channel Fuel Tank Alarm

The CTS single channel fuel tank alarm system provides the user with the choice of setting the alarm to alert of either a high level, low level or bund leak depending upon their requirements. This level and bund alarm is a simple and cost effective solution when the user only requires to be alerted of one scenario, therefore making the multi-zone tank level alarm over-specified.

The single channel fuel tank alarm has a clear, descriptive seven segment LED display that informs the user of the activated tank state. It features a test button that will activate the 90dB sounder and flash the display showing the current configuration of the tank level alarm, and a mute button to silence the sounder.

This main powered version fuel tank alarm has the additional feature of a volt-free relay for connecting the fuel storage tank alarm to another piece of equipment on-site such as a building management system, or another mains powered single channel alarm allowing the alarm status to monitored remotely for example in the office. Whilst commonly used as a diesel tank alarm, it is also suitable for use with a range of fluids such as water, waste oil and chemicals (see accessories table for other tank level probes).

Please note: All cables must be free of electrical noise.

Features of the CTS Single Channel Fuel Tank Level Alarm:

• Choice of high level, low level or bund alert
• Weatherproof IP55 enclosure
• Red LED text display & 90dB sounder
• Test and alarm mute functions
• 4 x external mounting lugs
• Automatic reversed float logic if ‘low’ alert is selected
• Available in mains power
• Come with volt-free contact relay
• Versions with diesel/oil probe for fuel tanks
• Versions without probe for use with fluids other than diesel/oil
• 25m max probe length
