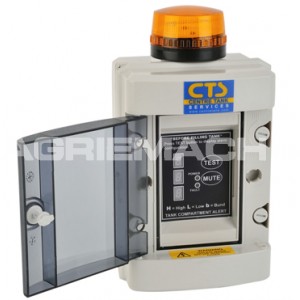

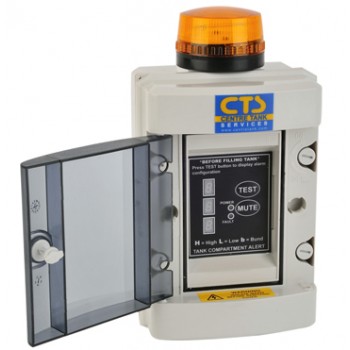

CTS Mains Multi-Compartment Fuel Tank Alarm

CTS Mains Multi-Compartment Fuel Tank Alarm
CTS Mains Multi-Compartment Fuel Tank Alarm CTS Mains Multi-Compartment Fuel Tank Alarm CTS Mains Multi-Compartment Fuel Tank Alarm CTS Mains Multi-Compartment Fuel Tank Alarm
Product Code: SWS2000
Availability: In Stock
Prices from: £229.20 (inc VAT)
Ex VAT: £191.00

Delivery

Order total Delivery
Under £28.00 (+VAT) £17.50
Over £28.00 (+VAT) £12.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

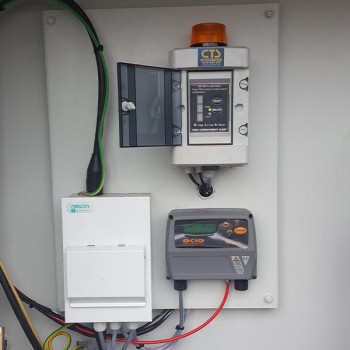

The CTS Mains Operated Multi-Compartment Fuel Tank Alarm system has three functions; to detect and warn of a tank overfill, a high/low liquid level and a bund leak. If this fuel tank alarm identifies any of these issues, the zone in question will light up on the alarm’s screen, combined with an alarm sounder and flashing orange strobe, which provides the user with a clear warning of the activated tank state. Each zone can be configured in any of the three functions High, Low or Bund, enabling the complete customisation of these fuel tank alarms based upon the user's requirements with a very simple set of electrical jumpers.

Options are available complete with three relays, to allow external equipment to be connected to each zone of the tank level alarm such as building management system for remote monitoring. This level and bund alarm also has the additional feature of controlling the pump from the relays (if fitted). When the fuel storage tank contents are 'low', the pump switches on and stays on until 'high' is reached.

If you require a tank level alarm for something other than diesel or light oil, we also supply a water and chemical alarm probe, and a high viscosity oil tank level probe – which is also suitable for AdBlue as well as high viscosity oils. Please see the accessories table for more information.

Please note: Codes SWS2000 and SWS2001 do not come complete with probes. Please view the accessories table to select the combination you need.

Features of the CTS Mains Multi-Zone Fuel Tank Level Alarm:

  • For any combination of high, low, bund
  • Weatherproof IP55 rated box
  • LED zone lights up to indicate the issue
  • 90db sounder
  • Flashing orange strobe
  • Test and mute functions
  • Automatically reversed float logic for 'low zones'
  • Accepts multiple voltages of 110v, 230v, 12v and 24v
  • Option available with 3 relays
  • Options with probe/s available - see table
  • SWS2000 and SWS2001 not supplied with probes - select from accessories table
Code Product Description Price (excl VAT)
SWS2000 CTS Mains Multi-Compartment Fuel Tank Alarm Box Only Box only - select probes from accessories table
Multiple input voltages
Orange strobe
90dB sounder
£191.00
SWS2009 CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe & 3 Relays Alarm Box c/w Single Probe
Multiple input voltages
Orange strobe
90dB sounder
3 x Relays (C,NO,NC @ 230v 8A)
£246.40
SWS2010 CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe, Double Probe & 3 Relays Alarm Box c/w Single & Double Probes
Multiple input voltages
Orange strobe
90dB sounder
3 x Relays (C,NO,NC @ 230v 8A)
£319.24

Accessories

Code Accessory Price (excl VAT)
AGR-SWS2001 Mains Multi Zone Alarm c/w Relays
£206.18

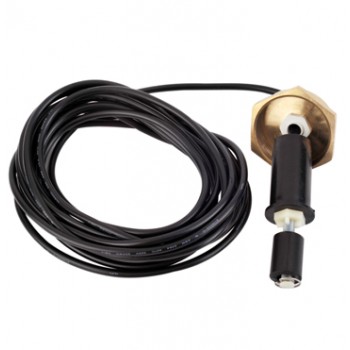

AGR-SWS1035 Single Fuel Probe – for leak detection if drip tray is installed
£38.45

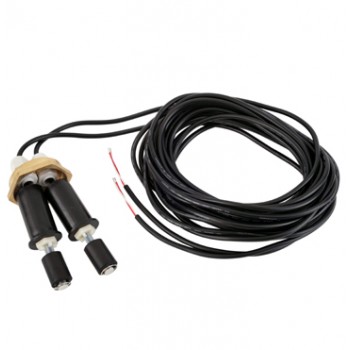

SWS1035/2 Alerts - High/low, high/high, low/low
Cable - 2 x 5m PVC
Temperature - -20°c - +80°c
Connection - 1 1/2" F BSP brass cap
2 x Grommet
For diesel, fuels, light oils and water
£74.64
SWS1036 Plastic Tank Kit - For Single Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
£8.80
SWS1037 Plastic Tank Kit - For Double Probe
Kit for use on a plastic rather than steel tank
Steel, flat, round plate
2 x Grommet
£11.16
SWS1009 Extra Alarm Cable Per Metre Per Metre
£1.68
SWS1038 Alerts - High and Low
Cable - 5m PVC
Temperature - 0°c - +60°c
Connection - 1 1/2" F BSP Plastic Cap
For viscous fluids and waste oils
£68.20
SWS1040 Alerts - High or Low
Cable - 5m PVC
Temperature - 20°c - +80°c
Connection - 1 1/2" F BSP Polyethylene Cap
£39.68
SWS1038AB Alerts - High and Low
Cable - 5m PVC
Temperature - 0°c - +60°c
Connection - 1 1/2" F BSP Plastic Cap
For AdBlue
£71.28
SWS2001 Mains Multi Zone Alarm c/w Relays
£212.76
SWS1035 Single Fuel Probe – for leak detection if drip tray is installed
£39.68
