Supertrapp Spark Arrestor - 3s Adaptor - 1.5" Threaded
SuperTrapp is the only U.S.D.A. Approved spark arrestor without restrictive swirl baffles or fragile screens.

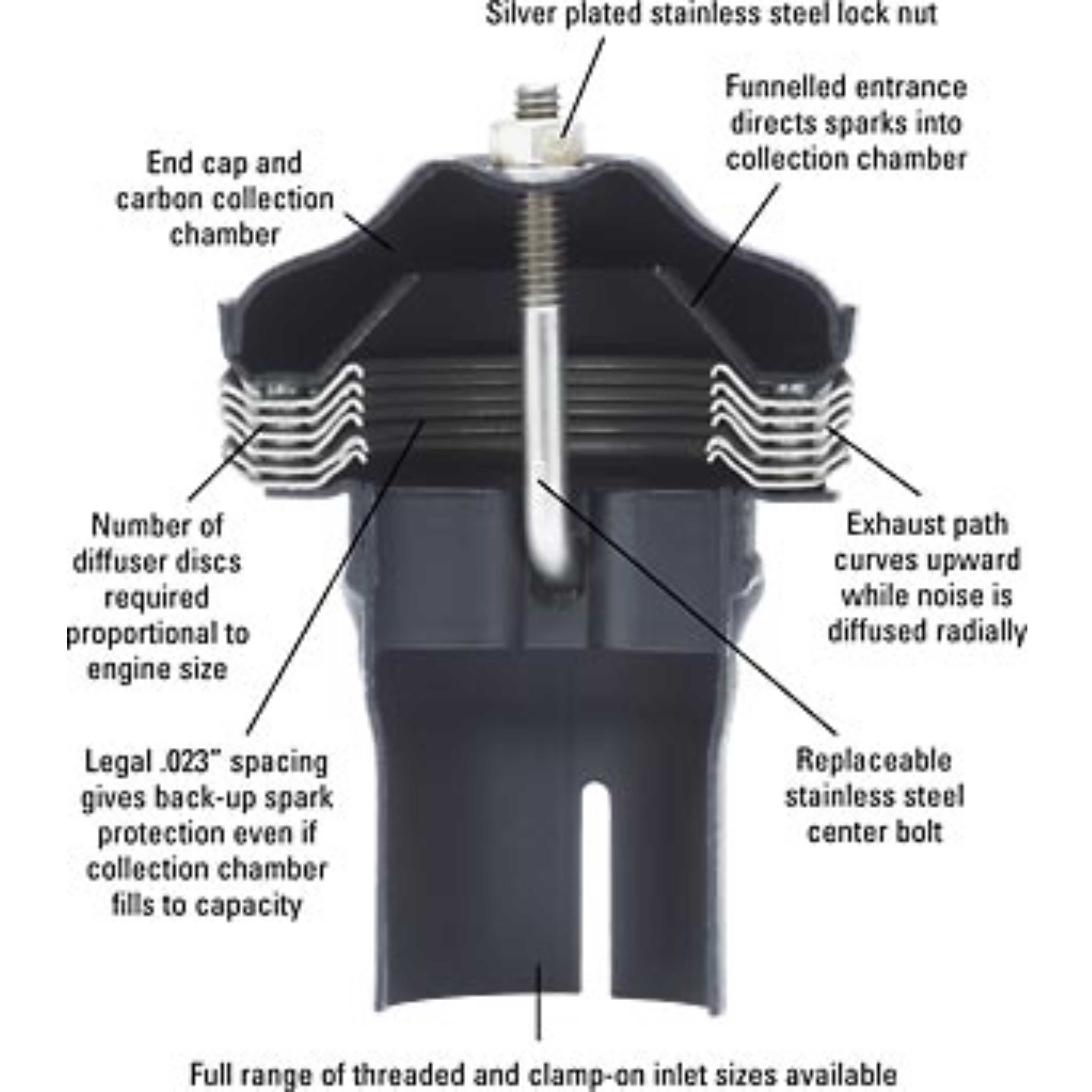

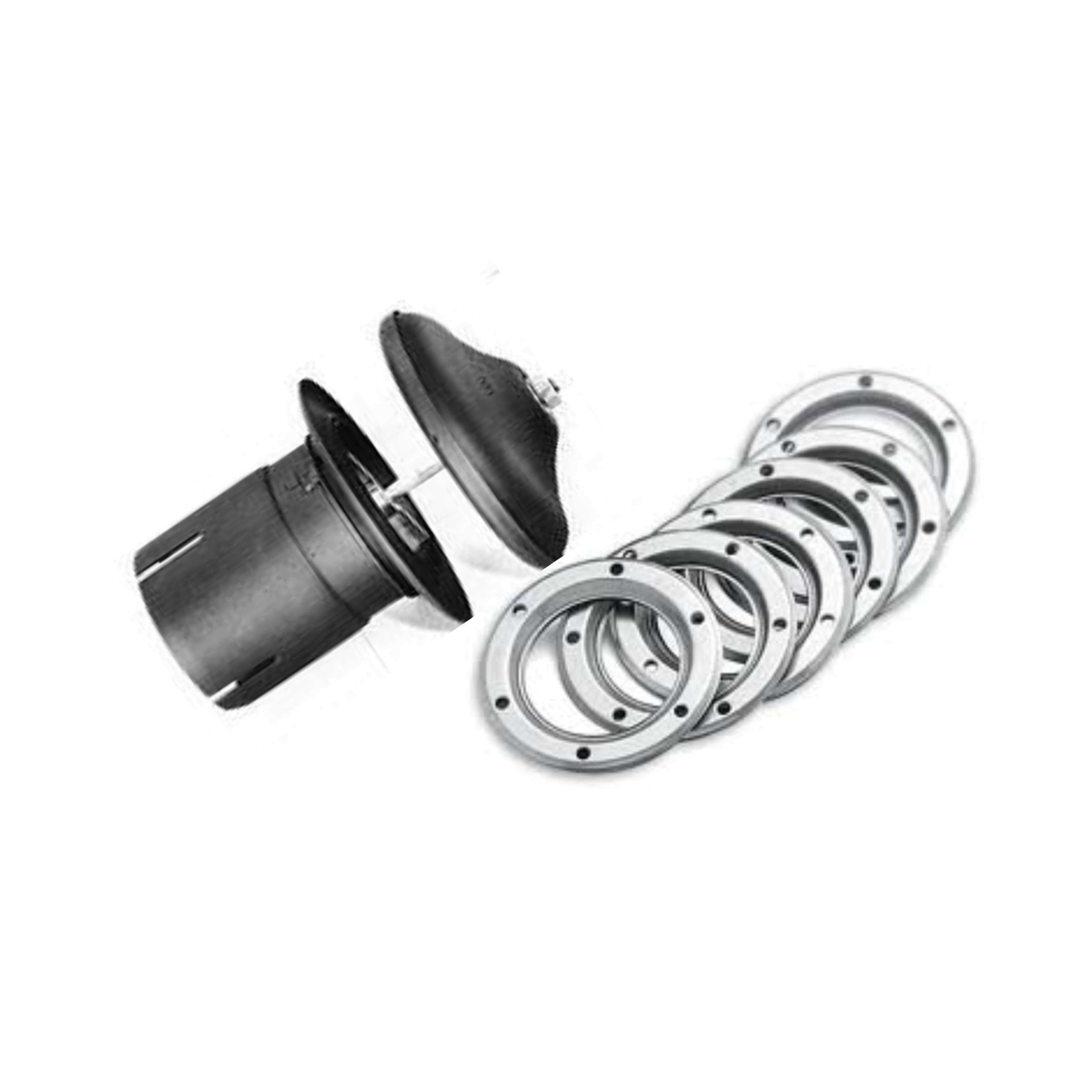

The exhaust outlet is formed by stacking the individual diffuser discs to form a series of annular openings. The precise spacing between the discs provides a barrier against noise and sparks without restricting the exhaust flow. The number of diffuser discs required is proportional to engine size. The exhaust noise will be minimized when the least number of discs is used.
As the exhaust flows out radially between the discs, the noise is first dissipated and then diffused over a quiet 360° pattern. After leaving the discs, the exhaust path curves inward toward the centerline and is rapidly cooled by mixing with the surrounding air. Only 1⁄2" side clearance is required between the disc’s outer edge and any heat sensitive areas.
Used by major hire companies and engine manufacturers.
- Model 3S - Suitable for engines 2 - 50 HP
- Approx. 1 disc per 3 HP
- The most compact and efficient spark arrestor available for their size
- Reduces noise
- Cools the exhaust gases as they enter the atmosphere
- Complete with Certificate of Conformity
- Please Call for Sizing Assistance (01342) 713743
