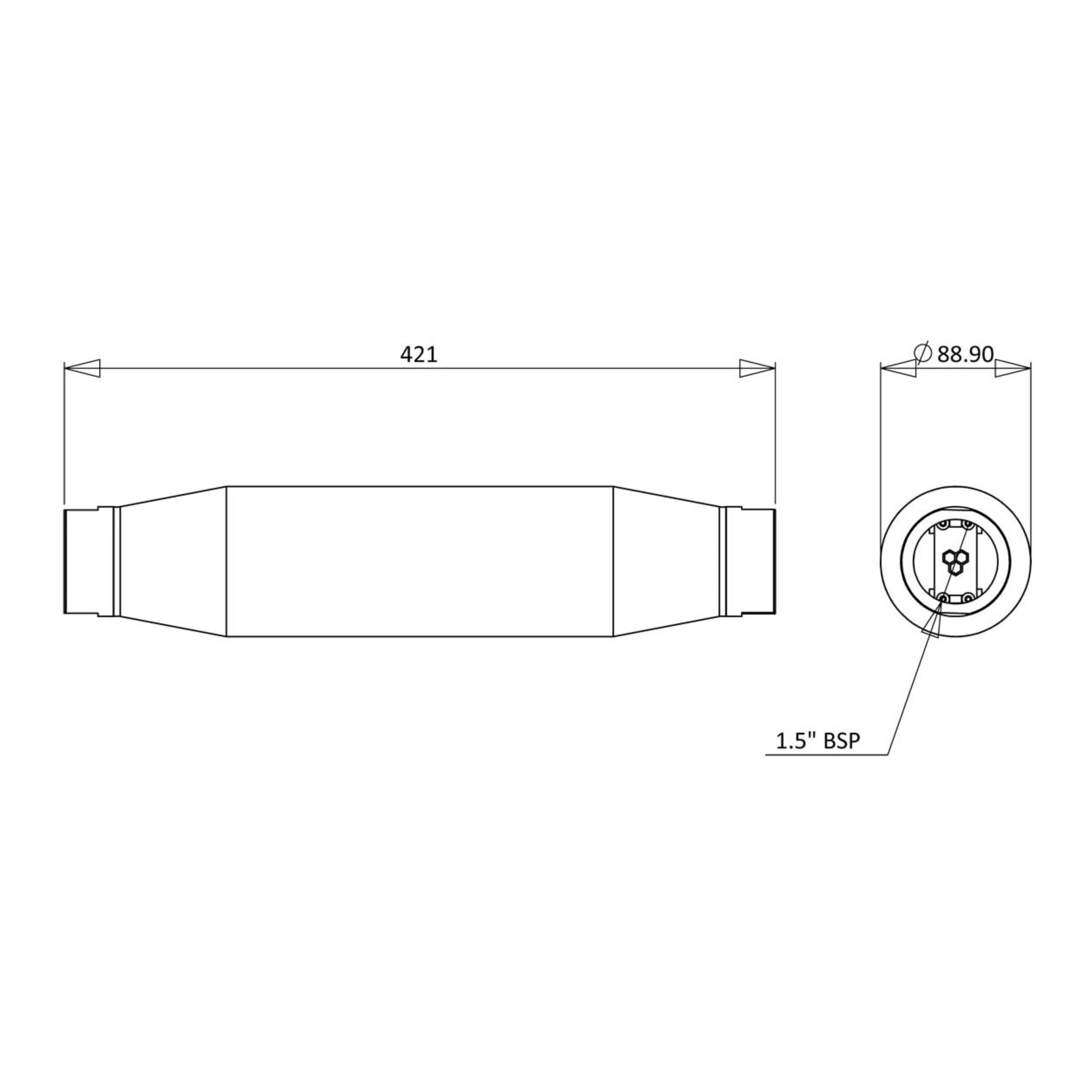

A pre-filtration conditioner (PFC) to reduce the effects of MicroBiological Growth (MBG) in distillate and residual fuels. The FM40TS is designed for fuel systems with 40mm (1.5") pipes and has 1.5" BSP fittings.

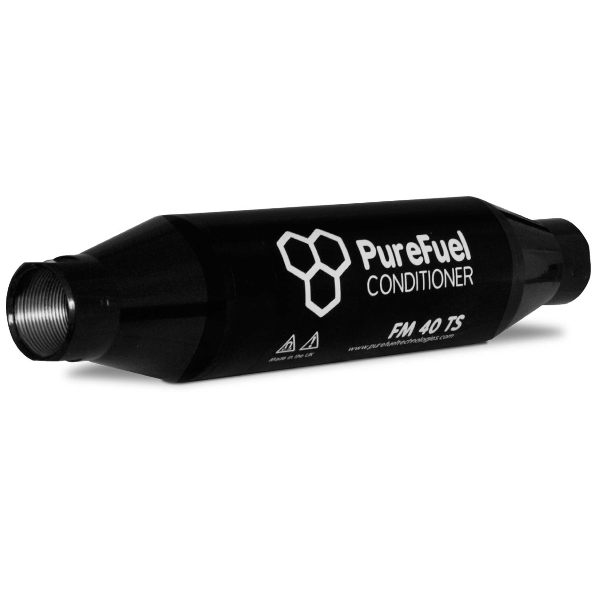

Fm40ts Purefuel Conditioner - 176lpm
Product Code: FM40TS
Availability: In Stock
Availability: In Stock
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare
- Disperses biofilms
- Extracts abrasive, ferrous particles caused by corrosion
- Fits in fuel supply pipe before first filter
- Reduces filter blockage
- Compatible with all fuel types
Approvals:
Bureau Veritas 21437/A0
Where to fit and why:
The FM40TS is designed for fuel systems with 40mm (1.5") pipes and has 1.5" BSP fittings. The FM40TS is for 1.5" pipe systems with high flow rates and is typically used in heating and power plants, ship fuel systems and fuel storage tank outlets. It should be fitted ahead of a particulate filter, and as close as possible to it, to protect the filter from premature blocking.
You will need (not supplied):
- 2 x 1.5" BSPP connector
Tools you will need:
- 50mm wrench
- 65mm wrench
Fitting guidance:
The FM40TS is simple to fit for any competent maintenance technician.
Fitting notes:
- Ensure the PFC is adequately supported
- Apply thread sealant (supplied)
- If installed horizontally ensure the label is facing directly up
