Racor Fbo Series Filters

Racor Hydrocarbon Filters’ new FBO-10 and FBO-14 filter assemblies were designed to meet the toughest hydrocarbon refueling conditions and give maintenance personnel ease of filter change outs.

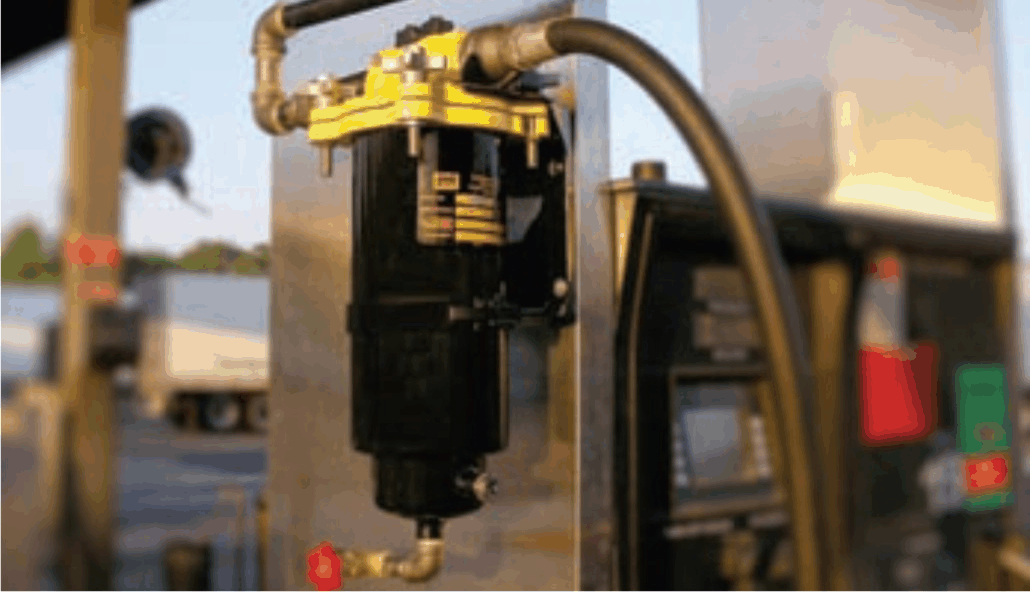

The FBO Assembly can flow 38 lpm or up to 284 lpm depending on the unit, elements installed and fuels being filtered. The FBO assembly can be used on mobile refuelers or installed in refueling cabinets. The unit can also be used for diesel fuel dispensing pumps or as a primary fuel filter/water separator for large diesel engines.

The assembly features a “locking ring collar”, which attaches the filter housing to the aluminum die cast filter head with four bolts. The slotted “locking ring collar” allows maintenance personnel to hand loosen the four collar bolts, rotate and lower the bowl assembly for element change outs. With new element installed, simply raise the bowl and rotate into position on the locking ring and hand tighten evenly.

The closure hardware consists of stainless steel nuts, bolts, and washers with metal hand knobs for ease of maintenance. No wrenches or other special tools required.

(FBO Bulletin - April 2007).pdf (705.81 Kb)

FBO Installation Instructions


List Grid
Show:
Sort By:
Racor Fbo 10 Tank Filter (38 - 199lpm)
HIGH FLOW FUEL FILTER/WATER SEPARATOR 38 - 199 LITERS PER MINUTE The new FBO series of filte..
£616.50 incl. VAT
£513.75 excl. VAT
Racor Fbo 14 Tank Filter (57 - 284lpm)
RACOR FBO-14 HIGH FLOW FUEL FILTER/WATER SEPARATOR 57 - 284 LITERS PER MINUTE The ne..
£774.47 incl. VAT
£645.39 excl. VAT
Racor Fbo 10 5micron Separator Filter
  Applications High flow filters used in separating water from various hydrocarbons such ..
£134.68 incl. VAT
£112.23 excl. VAT
Racor Fbo 14 5micron Separator Filter
  Applications High flow filters used in separating water from various hydrocarbons such ..
£149.10 incl. VAT
£124.25 excl. VAT
Racor Fbo 14 25micron Seperator Filter
  RACOR FBO SERIES FILTER ELEMENT 25 MICRON FILTRATION WATER SEPERATING FILTER MEDIA ..
£155.29 incl. VAT
£129.41 excl. VAT
