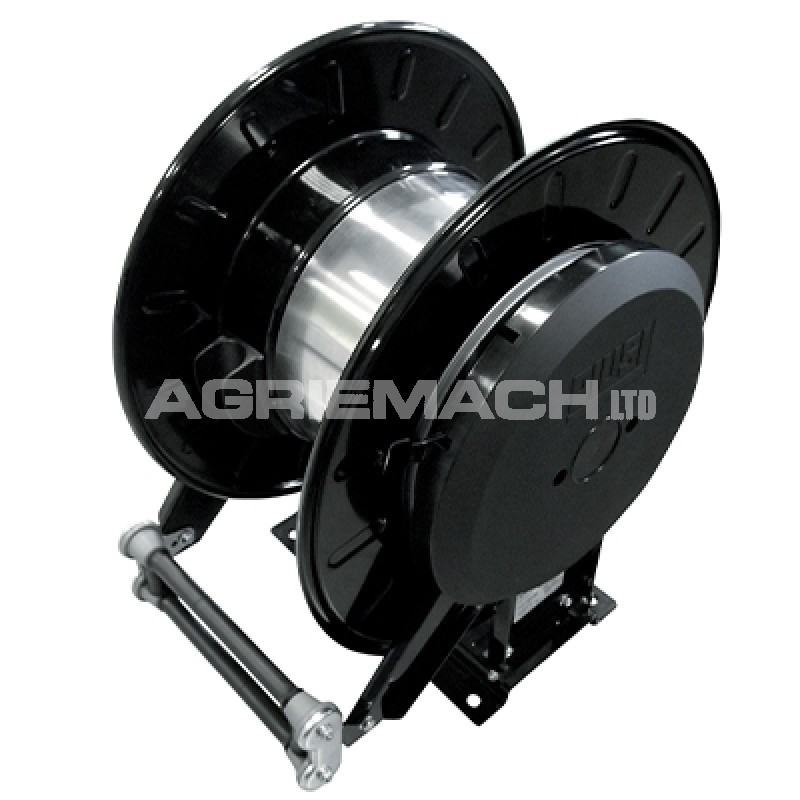

Piusi Heavy Duty Hose Reel

Piusi Heavy Duty Hose Reel
Product Code: F0075025A
Availability: In Stock
Prices from: £865.87 (inc VAT)
Ex VAT: £721.56

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

The Piusi Heavy Duty Hose Reel has been designed specifically to ensure high efficiency when transferring a high volume of fuel or filling a high volume of vehicles. Popular with bunded fuel tank manufacturers for mounting directly onto the storage tank or for heavy-duty applications such as quarries, agriculture and construction, this retractable diesel fuel hose reel comes with a steel inlet, centre hub fluid path and outlet, making it a more robust system.
One of the main differences compared to the Piusi Automatic Hose Reel is that the construction of the heavy duty hose reel has extra bends in the main column. This provides extra strength and stops the frame from twisting when the reel is in a fully extended position. This heavy-duty hose reel benefits from a protected latch mechanism to prevent injury to the hands when the reel is in use and has four-way rollers to guide the hose in any position that you decide to pull it. The diesel hose reel can be easily mounted in various positions without any problem with functionality and safety due to its adjustable, 3 position arm brackets that allow easy positioning.
The Piusi Heavy Duty Hose Reel can be supplied complete with a range of hose lengths or a bare reel should the user wish to add their own choice of hose. The bare version of the Piusi retractable diesel fuel hose reel comes with a protection spring, hose stop and hose clamp for the easy connection of the user's choice of hose.

Features of the Piusi Retractable Fuel Hose Reel:

  • Automatic spring rewind fuel hose reel
  • Sturdy heavy-duty steel structure
  • Reduced pressure loss through hydraulic sizing
  • Protected latch mechanism which prevents injury
  • Adjustable arm brackets for easy positioning
  • Can be supplied with or without a hose
  • 1" versions available



 Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Code Product Description Price (excl VAT)
F0075025A 1” Empty Hose Reel XL Steel hub Max Pressure (Bar) - 10
Inlet - 1" M BSPP Swivel
Oulet - 1" Hose Barb
Pressure Loss (Bar) - 0.5@80 lpm
£721.56
F0075026B 1” Hose Reel XL Steel Hub c/w 15m hose Max Length (m) - 15m
Max Pressure (Bar) - 10
Inlet - 1" F BSPP Swivel
Oulet - 1" M BSP
Pressure Loss (Bar) - 0.8@80 lpm
£932.96
