Brass Gate Valve
Product Code: VT1317
Availability: In Stock
Availability: In Stock
Prices from: £10.56 (inc VAT)
Ex VAT: £8.80
Ex VAT: £8.80
Delivery
| Order total | Delivery |
| Under £30.00 (+VAT) | £20.00 |
| Over £30.00 (+VAT) | £15.00 |
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare

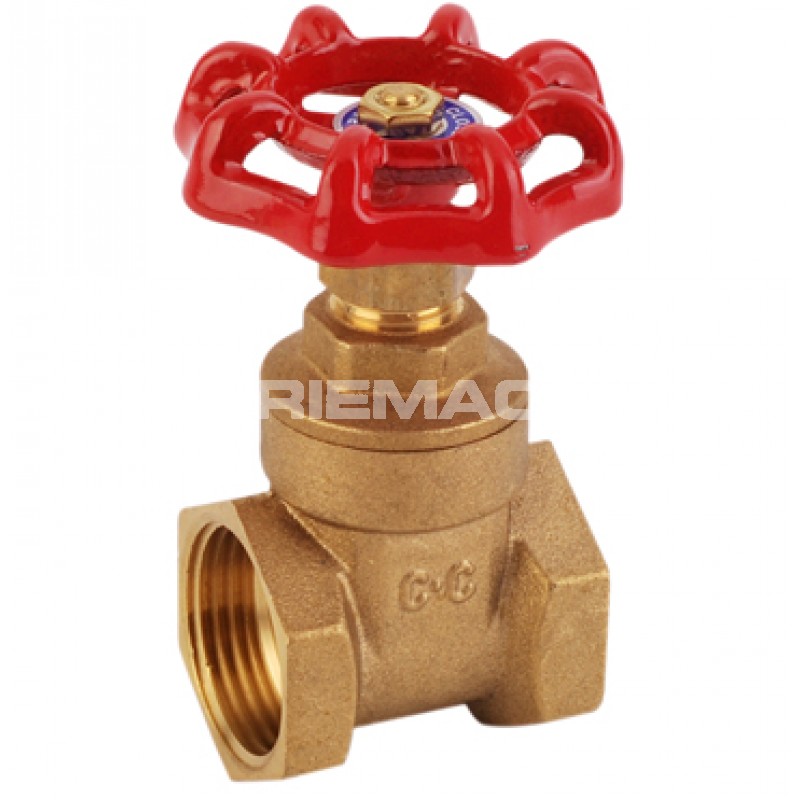

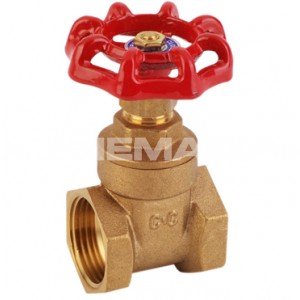

The Brass Gate Valve is a standard gate valve, which can be used for a variety of applications, including on some of our Gravity Hose Kits. These economy gate valves are designed for starting/shutting off flow, are supplied from stock as 1” F x F BSP, although there are a number of other sizes available on request. The gate valves are used within fuel and water installations, and are suitable for use with diesel, oil and water.
- Brass gate valve
- PN20 pressure rating
- Viton seals
- F x F threads
- BS5154 approved
| Code | Product | Description | Price (excl VAT) | |
|---|---|---|---|---|
| VT1325 | Brass Gate Valve PN20 4” F x F | Bore DN (mm) - 82 Pressure Rating (Bar) - PN20 Length (mm) - 119.5 Height (mm) - 235 4" F BSP Water, diesel and oil |
£219.44 | |
| VT1324 | Brass Gate Valve PN20 3” F x F | Bore DN (mm) - 69.5 Pressure Rating (Bar) - PN20 Length (mm) - 103 Height (mm) - 190 3" F BSP Water, diesel and oil |
£116.96 | |
| VT1323 | Brass Gate Valve PN20 2 ½” F x F | Bore DN (mm) - 57 Pressure Rating (Bar) - PN20 Length (mm) - 94 Height (mm) - 163.5 2 1/2" F BSP Water, diesel and oil |
£89.96 | |
| VT1322 | Brass Gate Valve PN20 2” F x F | Bore DN (mm) - 41 Pressure Rating (Bar) - PN20 Length (mm) - 82.5 Height (mm) - 147.7 2" F BSP Water, diesel and oil |
£49.80 | |
| VT1321 | Brass Gate Valve PN20 1 ½” F x F | Bore DN (mm) - 30 Pressure Rating (Bar) - PN20 Length (mm) - 66 Height (mm) - 113.7 1 1/2" F BSP Water, diesel and oil |
£34.00 | |
| VT1319 | Brass Gate Valve PN20 1” F x F | Bore DN (mm) - 18 Pressure Rating (Bar) - PN20 Length (mm) - 52 Height (mm) - 87.6 1" F BSP Water, diesel and oil |
£15.48 | |
| VT1318 | Brass Gate Valve PN20 ¾” F x F | Bore DN (mm) - 14 Pressure Rating (Bar) - PN20 Length (mm) - 46 Height (mm) - 76.7 3/4" F BSP Water, diesel and oil |
£11.44 | |
| VT1317 | Brass Gate Valve PN20 ½” F x F | Bore DN (mm) - 13 Pressure Rating (Bar) - PN20 Length (mm) - 43 Height (mm) - 72.1 1/2" F BSP Water, diesel and oil |
£8.80 |
