Angle Lever Ball Valve
Product Code: R783LX003
Availability: In Stock
Availability: In Stock
Prices from: £21.22 (inc VAT)
Ex VAT: £17.68
Ex VAT: £17.68
Delivery
| Order total | Delivery |
| Under £30.00 (+VAT) | £20.00 |
| Over £30.00 (+VAT) | £15.00 |
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare

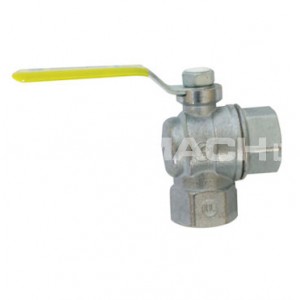

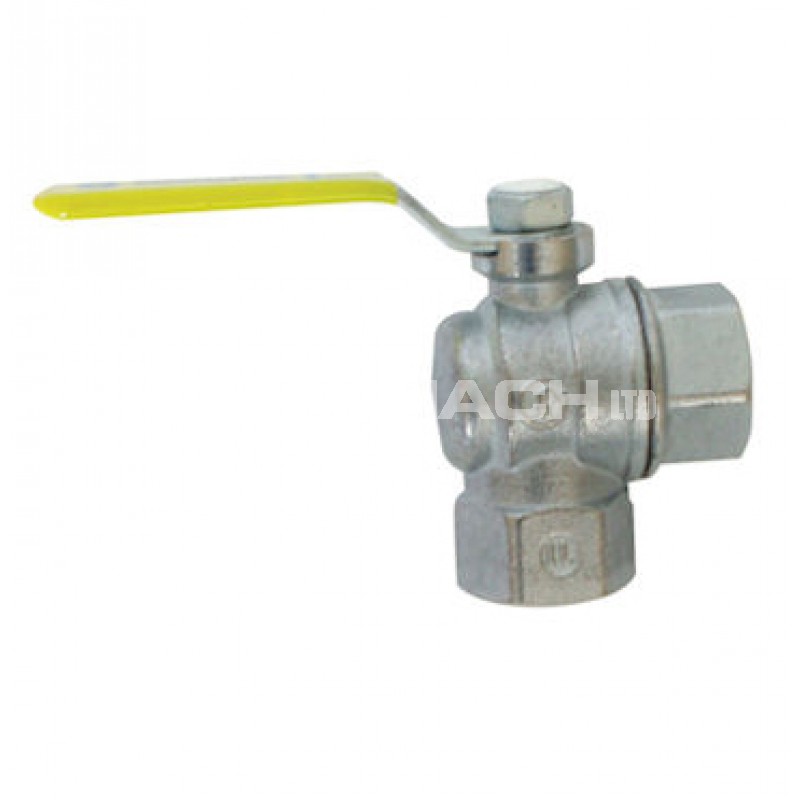

The Angle Lever Ball Valve is a chrome-plated 90° full bore brass ball valve that meets EN331:1998 European Standards. These angle lever ball valves are available in a range of sizes in M x F or F x F BSP options, and has a pressure rating of PN40.
- Chrome-plated brass ball valve
- F x F or M x F BSP (depending on model)
- EN331:1998 gas approved
| Code | Product | Description | Price (excl VAT) | |
|---|---|---|---|---|
| R783LX005 | 1" F x F Brass Angle Lever Ball Valve | Bore DN (mm) - 25 Thread Depth (mm) - 24 Length (mm) - 69 Height (mm) - 98 Thread - 1" F x F BSP |
£40.16 | |
| R783LX004 | 3/4" F x F Brass Angle Lever Ball Valve | Bore DN (mm) - 20 Thread Depth (mm) - 20 Length (mm) - 58 Height (mm) - 86 Thread - 3/4" F x F BSP |
£31.68 | |
| R783LX003 | 1⁄2" F x F Brass Angle Lever Ball Valve | Bore DN (mm) - 15 Thread Depth (mm) - 17 Length (mm) - 50 Height (mm) - 69 Thread - 1/2" F x F BSP |
£17.68 | |
| R780XL005 | 1" M x F Brass Angle Lever Ball Valve | Bore DN (mm) - 25 Thread Depth (mm) - 24 Length (mm) - 69 Height (mm) - 101 Thread - 1" M x F BSP |
£34.08 | |
| R780XL004 | 3/4" M x F Brass Angle Lever Ball Valve | Bore DN (mm) - 20 Thread Depth (mm) - 19 Length (mm) - 58 Height (mm) - 90 Thread - 3/4" M x F BSP |
£32.04 | |
| R780XL003 | 1⁄2" M x F Brass Angle Lever Ball Valve | Bore DN (mm) - 15 Thread Depth (mm) - 17 Length (mm) - 50 Height (mm) - 76 Thread - 1/2" M x F BSP |
£25.96 |
