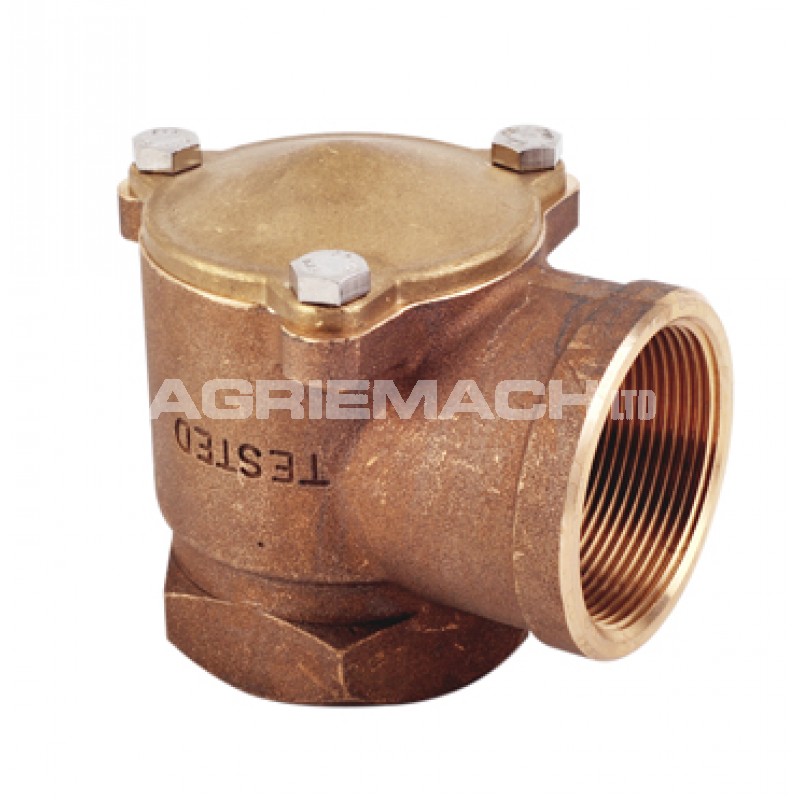

Brass Angle Check Valve

Brass Angle Check Valve
Product Code: OAB3135
Availability: In Stock
Prices from: £76.08 (inc VAT)
Ex VAT: £63.40

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

The Brass Angle Check Valve is designed to make sure that the suction pipe connected to an above ground storage tank remains primed with a suitably rated spring. It also ensures that pressure from the head of fuel is held back from the pump. If the pumping system has a hose reel, then the available pressure relief valve should be installed.

  • Forged brass body
  • Viton or NBR Seals
  • F BSP Inlet/Outlet
Code Product Description Price (excl VAT)
OAB3025PRV 2" Brass Angle Check Valve c/w Pressure Relief Valve Body - Brass
Valve - Viton
2" F BSP
Safety Valve - 1.38 bar
Pressure Relief Poppet
£82.16
OAB3135PRV 1 1/2" Brass Angle Check Valve c/w Pressure Relief Valve Body - Brass
Valve - Viton
1 1/2" F BSP
Safety Valve - 1.38 bar
Pressure Relief Poppet
£73.40
OAB3026 2" Brass Straight Check Valve Body - Brass
Valve - Viton
2" F BSP
£140.48
OAB3025 2" Brass Angle Check Valve Body - Brass
Valve - Viton
2" F BSP
£74.40
OAB3028 2" Brass Angle Check Valve Body - Brass
Valve - NBR
2" F BSP
£74.40
OAB3136 1 1/2" Brass Straight Check Valve Body - Brass
Valve - Viton
1 1/2" F BSP
£139.36
OAB3135 1 1/2" Brass Angle Check Valve Body - Brass
Valve - Viton
1 1/2" F BSP
£63.40
OAB3134 1 1/2" Brass Angle Check Valve Body - Brass
Valve - NBR
1 1/2" F BSP
£67.24

Accessories

Code Accessory Price (excl VAT)
OAB3135PR Pressure Relief Poppet for Angle Check Valves
£43.60
OAB4049 1 - PSI Spring for ACV
£6.56
OAB4050 3 - PSI Spring for ACV
£5.40
OAB4051 4.5 - PSI Spring for ACV
£8.20
OAB4052 6 - PSI Spring for ACV
£6.56
OAB5053 9 - PSI Spring for ACV
£5.44
OAB4054 11 - PSI Spring for ACV
£7.32
