Locking Angle Brass Gate Valve

Locking Angle Brass Gate Valve
Product Code: OAB3046
Availability: In Stock
Prices from: £25.68 (inc VAT)
Ex VAT: £21.40

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

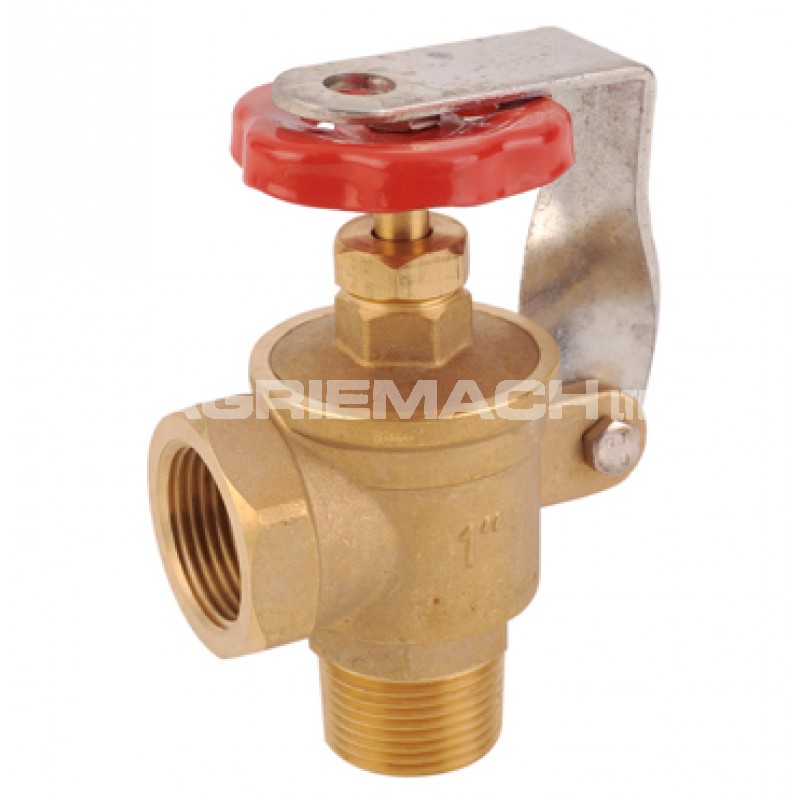

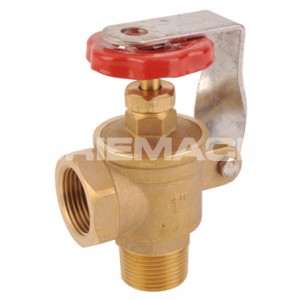

The Locking Angle Brass Gate Valve is used primarily on the bottom outlet of a gravity fed diesel storage tank. These gate valves are designed to come out at 90º to take away the pressure on the hose, and to maximize the flow rate through the delivery hose without restriction. The locking lever on these gate valves allows it to be padlocked when not in use. This angle gate valve is supplied as standard on some of our Gravity Hose Kits.

  • Brass gate valve
  • NBR seals
  • 1” M x F threads
  • PN8 rated
  • Suitable for water, diesel and oil
Code Product Description Price (excl VAT)
OAB3046 Locking Angle Brass Gate Valve 1” M x F Bore DN (mm) - 24.5
Pressure Rating (Bar) - PN8
Length (mm) - 90
Height (mm) - 80
1" M BSP x 1" F BSP
Water, diesel and oil
£21.40
