Brass Lockable Lever Ball Valve

Brass Lockable Lever Ball Valve
Product Code: LB5003
Availability: In Stock
Prices from: £15.89 (inc VAT)
Ex VAT: £13.24

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

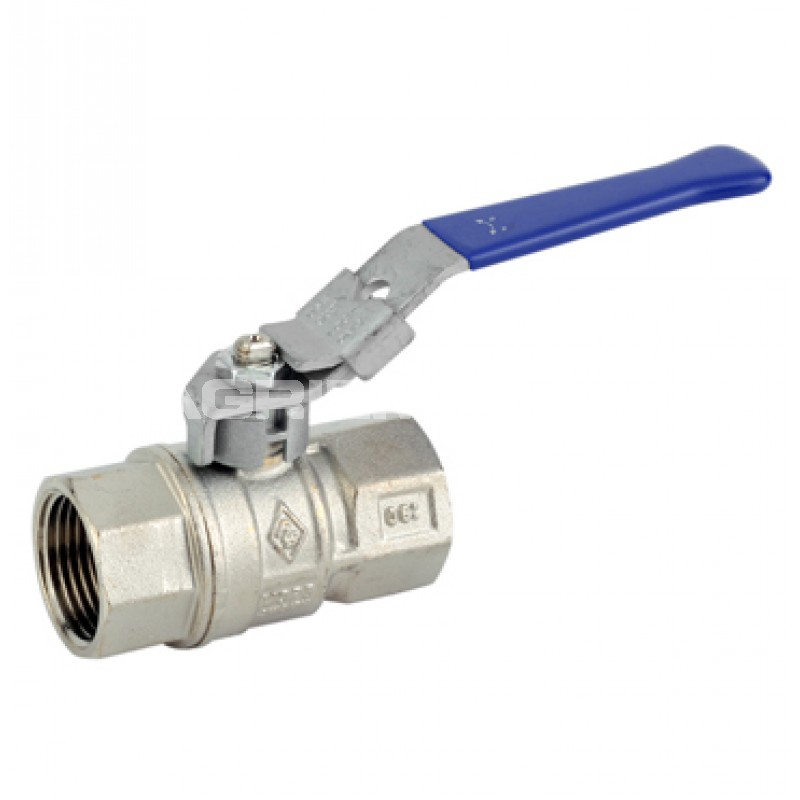

The Brass Lockable Lever Ball Valve is designed for a variety of applications and is available in a range of sizes. These lockable brass ball valves include a locking mechanism meaning that these are often required for security or safety. The lever ball valves can be locked using a padlock in either the open or closed position, and the locking device covers the stem nut, which makes the removal of the lever impossible without first removing the padlock.

  • Nickel plated brass ball valve
  • PN25 pressure rating
  • F x F BSP Thread
  • For use with diesel, oil & water
Code Product Description Price (excl VAT)
LB5010 Lockable Brass 3” FxF BSP Lever Ball Valve Bore DN (mm) - 75
Thread Depth (mm) - 33.5
Length (mm) - 177
Height (mm) - 136
3" F BSP
For use with diesel, oil & water
£289.64
LB5009 Lockable Brass 2½” FxF BSP Lever Ball Valve Bore DN (mm) - 62
Thread Depth (mm) - 33
Length (mm) - 155
Height (mm) - 130
2½" F BSP
For use with diesel, oil & water
£210.48
LB5008 Lockable Brass 2” FxF BSP Lever Ball Valve Bore DN (mm) - 50
Thread Depth (mm) - 26.5
Length (mm) - 121
Height (mm) - 93
2" F BSP
For use with diesel, oil & water
£61.44
LB5007 Lockable Brass 1 ½” FxF BSP Lever Ball Valve Bore DN (mm) - 40
Thread Depth (mm) - 23
Length (mm) - 102
Height (mm) - 86
1 1/2" F BSP
For use with diesel, oil & water
£42.68
LB5005 Lockable Brass 1” FxF BSP Lever Ball Valve Bore DN (mm) - 25
Thread Depth (mm) - 21
Length (mm) - 81
Height (mm) - 64
1" F BSP
For use with diesel, oil & water
£22.56
LB5004 Lockable Brass 3/4” FxF BSP Lever Ball Valve Bore DN (mm) - 20
Thread Depth (mm) - 17
Length (mm) - 64
Height (mm) - 60
3/4" F BSP
For use with diesel, oil & water
£16.92
LB5003 Lockable Brass ½” FxF BSP Lever Ball Valve Bore DN (mm) - 15
Thread Depth (mm) - 15.5
Length (mm) - 59
Height (mm) - 51
1/2" F BSP
For use with diesel, oil & water
£13.24
