Giacomini Brass Gate Valve

Giacomini Brass Gate Valve
Product Code: GT3401
Availability: In Stock
Prices from: £11.62 (inc VAT)
Ex VAT: £9.68

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

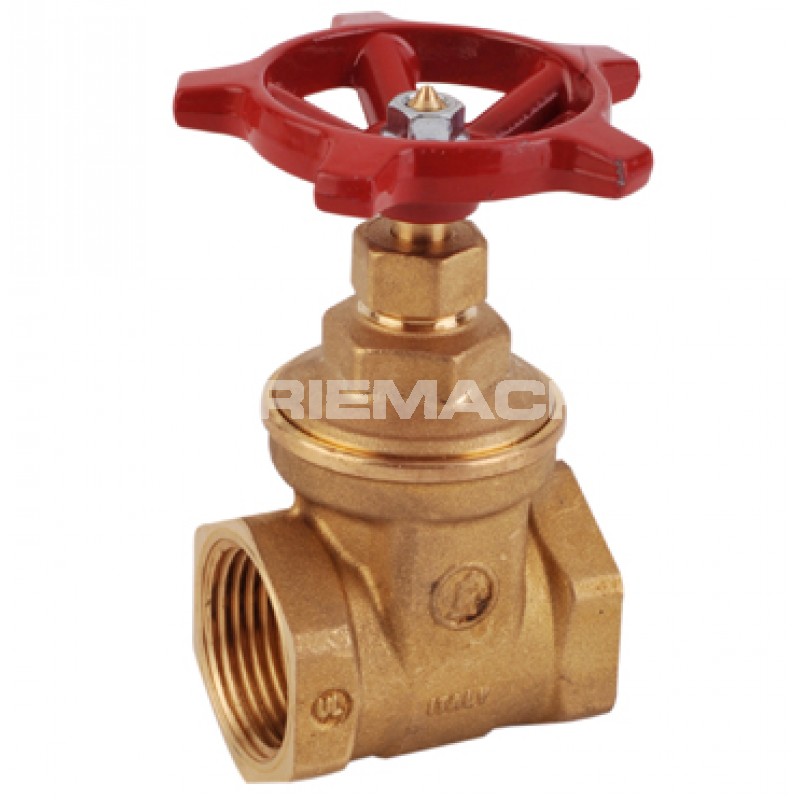

The Giacomini Brass Gate Valve is an Italian valve with an aluminium alloy hand wheel designed for starting/shutting off flow. For use within fuel and water installations, it has a PN16 pressure rating and is available in a range of sizes.

  • PN16 pressure rating
  • BS5154 approved
  • F x F threaded inlet/outlet
  • Suitable for water, diesel and oil
Code Product Description Price (excl VAT)
GT3410 4" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 100
Pressure Rating (Bar) - PN10
Length (mm) - 100
Height (mm) - 285
4" F BSP
Water, diesel and oil
£312.92
GT3409 3" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 70
Pressure Rating (Bar) - PN10
Length (mm) - 84
Height (mm) - 198
3" F BSP
Water, diesel and oil
£142.64
GT3408 2 1/2" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 60
Pressure Rating (Bar) - PN10
Length (mm) - 80
Height (mm) - 186
2 1/2" F BSP
Water, diesel and oil
£112.76
GT3407 2" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 51
Pressure Rating (Bar) - PN16
Length (mm) - 76
Height (mm) - 140
2" F BSP
Water, diesel and oil
£104.56
GT3406 1 1/2" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 38
Pressure Rating (Bar) - PN16
Length (mm) - 64
Height (mm) - 110
1 1/2" F BSP
Water, diesel and oil
£42.72
GT3405 1 1/4" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 32
Pressure Rating (Bar) - PN16
Length (mm) - 62
Height (mm) - 96
1 1/4" F BSP
Water, diesel and oil
£26.56
GT3404 1" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 25
Pressure Rating (Bar) - PN16
Length (mm) - 54
Height (mm) - 87
1" F BSP
Water, diesel and oil
£28.76
GT3403 3/4" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 19
Pressure Rating (Bar) - PN16
Length (mm) - 48
Height (mm) - 76
3/4" F BSP
Water, diesel and oil
£12.92
GT3402 1/2" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 14
Pressure Rating (Bar) - PN16
Length (mm) - 43
Height (mm) - 64
1/2" F BSP
Water, diesel and oil
£15.04
GT3401 3/8" FxF Brass Gate Valve - BS5154 Bore DN (mm) - 12
Pressure Rating (Bar) - PN16
Length (mm) - 37
Height (mm) - 60
3/8" F BSP
Water, diesel and oil
£9.68
