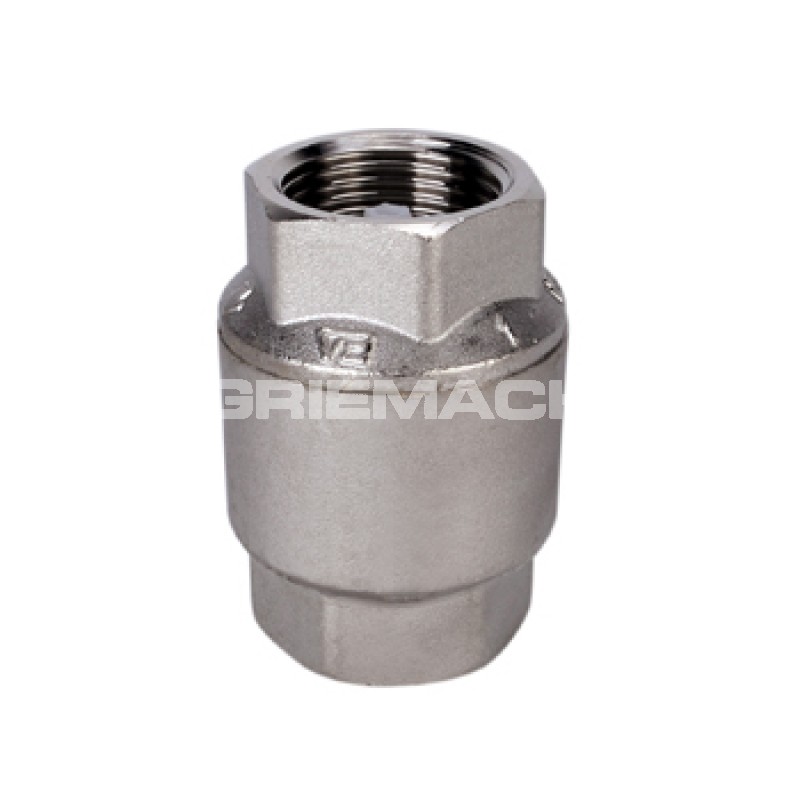

CIM 30DK Check Valve

CIM 30DK Check Valve
Product Code: CIM3008
Availability: In Stock
Prices from: £15.98 (inc VAT)
Ex VAT: £13.32

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

The CIM 30DK Check Valve is a spring loaded, non return valve designed for use with heating, sanitary, compressed air systems, pumps and fuel distribution networks. These check valves can be fitted in vertical, horizontal or oblique pipelines to allow the flow to go in one direction. These non return valves with Viton seals have F x F BSP internal threads on both the inlet and outlet.

  • Forged brass body
  • Stainless steel spring
  • F x F BSP Inlet/Outlet
  • Spring Pressure (bar / psi) of 0.025/0.36
Code Product Description Price (excl VAT)
CIM3016 4" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
4" F BSP
£472.20
CIM3015 3" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
3" F BSP
£236.36
CIM3014 2 ½" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
2 1/2" F BSP
£158.76
CIM3013 2" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
2" F BSP
£75.20
CIM3012 1 ½" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
1 1/2" F BSP
£62.60
CIM3010 1" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
1" F BSP
£26.52
CIM3011 1 ¼" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
1 1/4" F BSP
£41.80
CIM3009 ¾" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
3/4" F BSP
£18.92
CIM3008 ½" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
1/2" F BSP
£13.32
CIM3007 3/8" FxF BSP CIM 30DK Non Return Valve Body - Brass
Spring - Stainless Steel
Spring pressure (bar/psi) - 0.025/0.36
Seal - Viton
3/8" F BSP
£13.72
