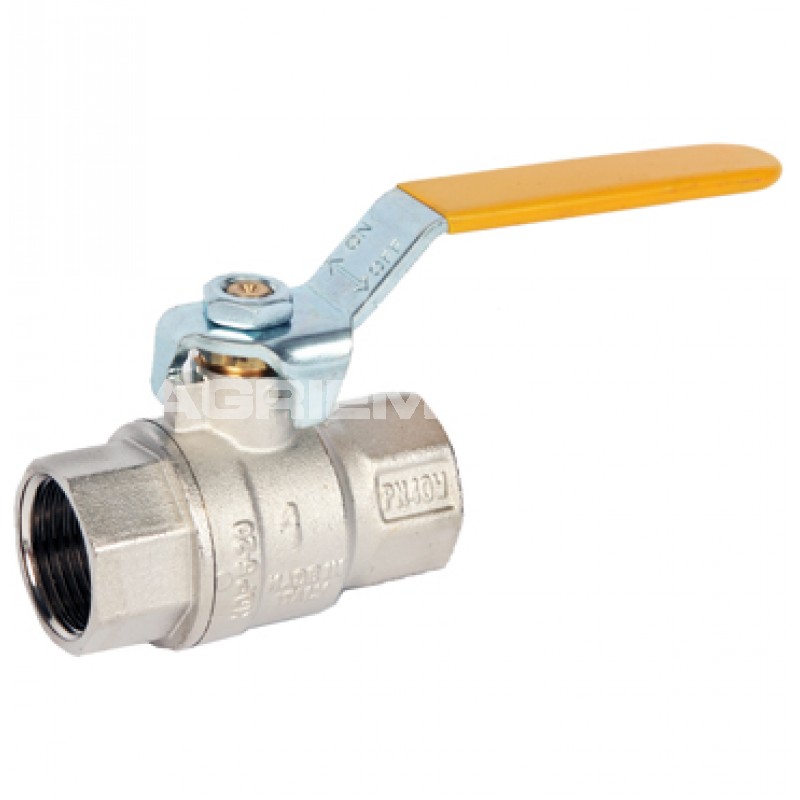

Yellow Handle Lever Ball Valve

Yellow Handle Lever Ball Valve
Product Code: AX194-038
Availability: In Stock
Prices from: £6.96 (inc VAT)
Ex VAT: £5.80

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

These Italian manufactured Yellow Handle Lever Ball Valves are nickel-plated full bore brass ball valves and are available in a range of sizes. Designed for starting/shutting off flow, these lever ball valves are popular within gas, water & fuel applications. They have a steel handle, FP o-ring and PTFE seals and are available with a range of pressure ratings depending upon the size of the valve.

  • Brass Lever Ball Valve
  • F x F BSP thread
  • PN40 (¼” - 1") PN32 (1¼” - 2") PN16 (2½” - 4") pressure rating
  • PN20 (¼” - 2") PN10 (2½” - 4") pressure rating for gas applications
  • WRAS & EN331:1998 gas approved
Code Product Description Price (excl VAT)
AX194-400 4" FxF Brass Lever Ball Valve Bore DN (mm) - 95
Thread Depth (mm) - 27
Length (mm) - 178
Height (mm) - 135
4" F BSP
For use with diesel, oil, water & gas
£282.00
AX194-300 3" FxF Brass Lever Ball Valve Bore DN (mm) - 74
Thread Depth (mm) - 24
Length (mm) - 150
Height (mm) - 127
3" F BSP
For use with diesel, oil, water & gas
£178.68
AX194-250 2 ½” FxF Brass Lever Ball Valve Bore DN (mm) - 61
Thread Depth (mm) - 20
Length (mm) - 130
Height (mm) - 120
2 1/2" F BSP
For use with diesel, oil, water & gas
£122.40
AX194-200 2" FxF Brass Lever Ball Valve Bore DN (mm) - 50
Thread Depth (mm) - 26
Length (mm) - 124
Height (mm) - 88
2" F BSP
For use with diesel, oil, water & gas
£64.36
AX194-150 1 ½” FxF Brass Lever Ball Valve Bore DN (mm) - 40
Thread Depth (mm) - 21
Length (mm) - 92
Height (mm) - 71
1 1/2" F BSP
For use with diesel, oil, water & gas
£43.00
AX194-125 1 ¼” FxF Brass Lever Ball Valve Bore DN (mm) - 32
Thread Depth (mm) - 21
Length (mm) - 92
Height (mm) - 71
1 1/4" F BSP
For use with diesel, oil, water & gas
£28.52
AX194-100 1” FxF Brass Lever Ball Valve Bore DN (mm) - 25
Thread Depth (mm) - 19
Length (mm) - 83
Height (mm) - 66
1" F BSP
For use with diesel, oil, water & gas
£18.28
AX194-075 ¾” FxF Brass Lever Ball Valve Bore DN (mm) - 20
Thread Depth (mm) - 16
Length (mm) - 71
Height (mm) - 58
3/4" F BSP
For use with diesel, oil, water & gas
£12.08
AX194-050 ½” FxF Brass Lever Ball Valve Bore DN (mm) - 15
Thread Depth (mm) - 15
Length (mm) - 63
Height (mm) - 54
1/2" F BSP
For use with diesel, oil, water & gas
£8.48
AX194-038 ⅜" FxF Brass Lever Ball Valve Bore DN (mm) - 10
Thread Depth (mm) - 10
Length (mm) - 45
Height (mm) - 41
3/8" F BSP
For use with diesel, oil, water & gas
£5.80
AX194-014 ¼” FxF Brass Lever Ball Valve Bore DN (mm) - 10
Thread Depth (mm) - 10
Length (mm) - 45
Height (mm) - 41
1/4" F BSP
For use with diesel, oil, water & gas
£6.00
