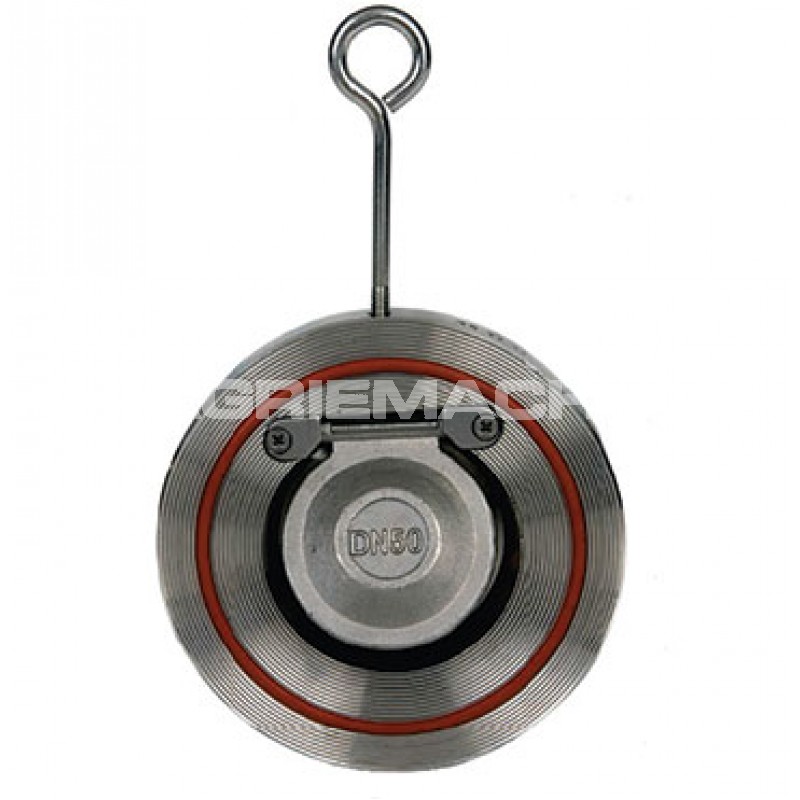

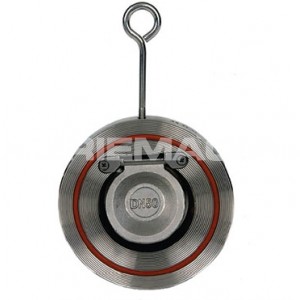

Stainless Steel Wafer Swing Check Valve

Stainless Steel Wafer Swing Check Valve
Product Code: AX119-200
Availability: In Stock
Prices from: £76.37 (inc VAT)
Ex VAT: £63.64

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

The Stainless Steel Wafer Swing Check Valve is a cost effective non-return valve, which only allows flow in one direction. Designed to fit in between flanges, these swing check valves are a compact solution for installations where space is an issue. These stainless steel wafer valves comprise of a stainless steel body, viton seals, seats and an o ring, and the smaller surface area make it a cost effective alternative to equivalent valves.

  • Stainless steel body
  • Viton seals
  • Working temperature -25°C/+200°C
  • PN16 pressure rating
  • Wafer pattern to suit ASA ISO flanges
  • Suitable for upwards and horizontal flow
Code Product Description Price (excl VAT)
AX119-200 2” S/S Wafer Swing Check Valve Body - Stainless Steel
Valve seat - Viton
Inlet/Outlet - 2” Wafer Pattern
Pressure (bar/psi) – 16/232
£63.64
AX119-300 3” S/S Wafer Swing Check Valve Body - Stainless Steel
Valve seat - Viton
Inlet/Outlet - 3” Wafer Pattern
Pressure (bar/psi) – 16/232
£89.16
AX119-400 4" S/S Wafer Swing Check Valve Body - Stainless Steel
Valve seat - Viton
Inlet/Outlet - 4” Wafer Pattern
Pressure (bar/psi) – 16/232
£134.12
