Husky 1GS Heavy Duty Automatic Diesel Nozzle

Husky 1GS Heavy Duty Automatic Diesel Nozzle
Product Code: HU-696238-04
Availability: In Stock
Prices from: £194.26 (inc VAT)
Ex VAT: £161.88

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

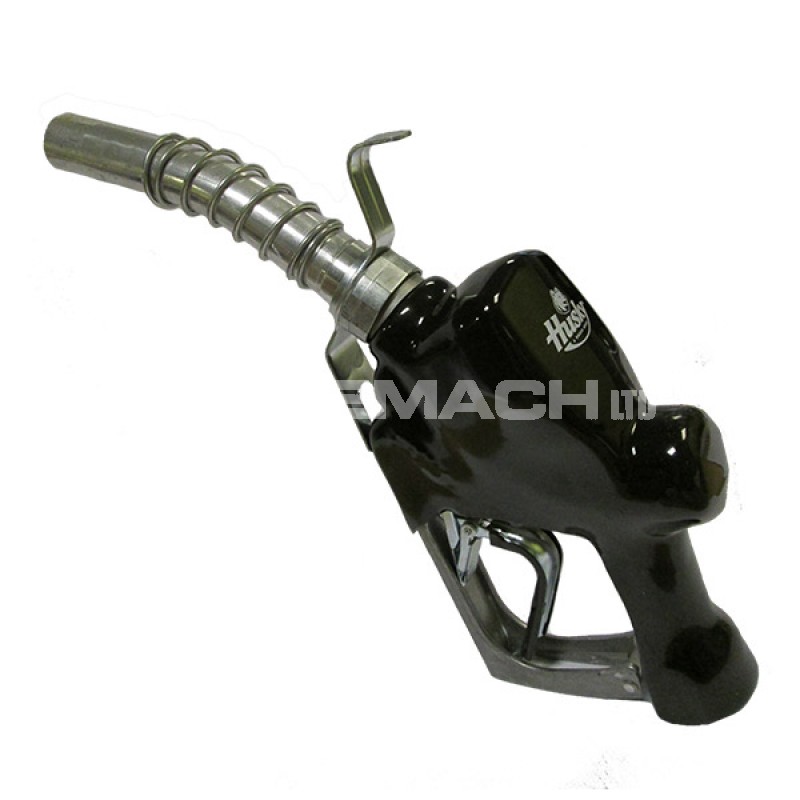

The Husky 1GS Diesel Nozzle is the most popular automatic shut off version within the Husky nozzle offering. With its higher flow rate, it is designed for the clean and quick refuelling of vehicles with larger tanks, as well as agricultural and plant machinery. One of the key benefits of the Husky diesel nozzle range is its replaceable spout. In the event of the user dropping the nozzle and damaging the spout, this alone can be replaced rather than having to buy an entire new nozzle, making it ideal for heavy duty site applications.

Like the other Husky fuel nozzles, the 1GS has an integrated device known as the Flo-stop®, which shuts off the fuel flow when the spout is raised above the horizontal or falls out the tank. This durable Husky nozzle is fully constructed of aluminium and has the great design feature of the sensing port being positioned behind the spout end. This means that even after excessive use it does not get worn; the most common cause of nuisance click offs.

Another added benefit of this auto shut off fuel nozzle is its anti-air lock feature. This allows for the simple and easy priming of the pump without having to remove the fuel pump nozzle from the end of the hose.

Features of the Husky 1GS Automatic Diesel Pump Nozzle:

  • Automatic fuel pump nozzle
  • Maximum flow rate: 100ltrs Per Min
  • Inlet: 1” F BSP
  • Patented Flo-stop® device
  • Durable die cast aluminium body with full scuff guard
  • Sensing port behind spout to prevent click offs
  • Anti-air lock feature for easy priming of pump
  • Integrated hook for hanging nozzle without a holster
  • For pumping systems only
  • Replacement spout kits available for serviceability



Discover the enhanced features that make Husky nozzles higher specification, ensuring both safety and serviceability.

Code Product Description Price (excl VAT)
HU-696238-04-SW 1GS Husky Diesel Nozzle - Swivel Max Flow Rate (lpm) – 100
Max Pressure (bar) – 3.5
Spout OD (mm) – 28.57
Inlet – 1” BSP Swivel
Automatic
Diesel
£171.88
HU-696238-04 1GS Husky Diesel Nozzle Max Flow Rate (lpm) – 100
Max Pressure (bar) – 3.5
Spout OD (mm) – 28.57
Inlet – 1” F BSP
Automatic
Diesel
£161.88

Accessories

Code Accessory Price (excl VAT)
HU-8862 Stream Shaper LDD Spout Assembly
£22.69
HU-1471 Stream Shaper LDD Spout Assembly
£46.00
