Piusi Ocio Electronic Fuel Tank Gauge

Piusi Ocio Electronic Fuel Tank Gauge
Piusi Ocio Electronic Fuel Tank Gauge Piusi Ocio Electronic Fuel Tank Gauge Piusi Ocio Electronic Fuel Tank Gauge Piusi Ocio Electronic Fuel Tank Gauge
Product Code: F0075510D
Availability: In Stock
Prices from: £476.78 (inc VAT)
Ex VAT: £397.32

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

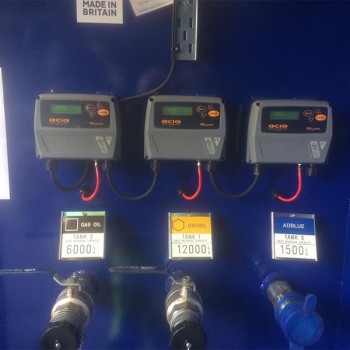

The Piusi Ocio Fuel Tank Gauge is a continuous reading, hydrostatic digital tank level monitoring device designed primarily for commercial diesel fuel tanks. Once calibrated using the specific tank measurements, the Piusi Ocio electronically displays the tank level reading in mm, litre or percentage depending upon the user preference. This fuel tank level gauge allows the user to configure low and high level status alerts, which upon activation causes the LED screen to flash to visually alert the user that the level has been reached for them to take action. It also benefits from two configurable relays for sending the high/low level alert statuses to other equipment e.g. a low level tank alarm for an audiable alert, a remote building management system or to the pump on the tank to turn it off e.g. in day tank filling.

The Piusi Ocio gauge is a versatile fuel tank level indicator suitable for use on vertical cylindrical, horizontal cylindrical and rectangular tanks up to 4m high. Whilst the standard model is designed primarily for diesel, there is an AdBlue™ tank gauge version available and a kit to make the standard Ocio compatible with oil popular in garage and workshop environments. There is also a 4-20ma output model available to allow you to send the level readings to a building management system, whereas the standard model would only send the set high/level alarm statuses to the BMS.

Features of the Ocio Digital Fuel Tank Level Gauge:

  • Electronic fuel tank contents gauge

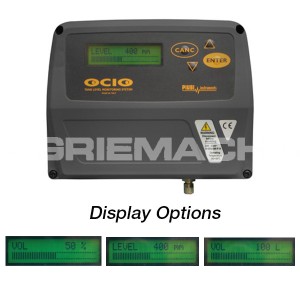

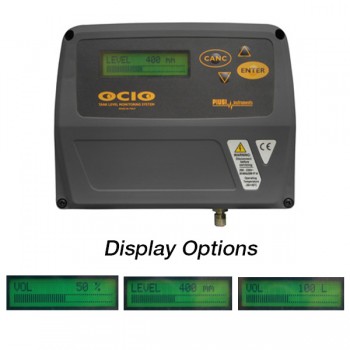

  • %, litre and mm readings

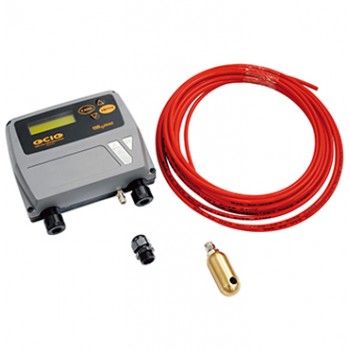

  • Tank probe with 10 metres capillary
  • ½” M BSP balance chamber fitting
  • For tanks between 600-4000mm
  • Accuracy +/-1%
  • High/low level statuses can be set up
  • C/w two relays for connection to other equipment
  • Suitable for diesel, water or AdBlue (depending on model)
  • Oil kit available to add to standard Ocio
  • Optional PC software available (see table)
  • IP54 Rated


Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Code Product Description Price (excl VAT)
F0075510D Piusi Ocio Fuel Tank Level Gauge 230v Reading Type: 0-100%/mm/inches/litres/gal
Tank Height (mm) - 600-4000
Capillary Length (m) - 10
Capillary Type - 6 x 4 Rilsan PA12
Brass Balance Chamber Weight
Balance Chamber Fitting: 1/2" M BSP
Max Working Temperature: -20ºc/+50ºc
Diesel, water, windscreen and oil if additional oil kit is purchased
£397.32
F0075501B Piusi Ocio Fuel Tank Level Gauge 110v Reading Type: 0-100%/mm/inches/litres/gal
Tank Height (mm) - 600-4000
Capillary Length (m) - 10
Capillary Type - 6 x 4 Rilsan PA12
Brass Balance Chamber Weight
Balance Chamber Fitting: 1/2" M BSP
Working Temperature: -20ºc/+50ºc
Diesel, water, windscreen and oil if additional oil kit is purchased
£413.64
F00755140 Piusi Ocio AdBlue Tank Level Gauge 230v - AdBlue™ Reading Type: 0-100%/mm/inches/litres/gal
Tank Height (mm) - 600-4000
Capillary Length (m) - 10
Capillary Type - 6 x 4 Rilsan PA12
Stainless Steel Balance Chamber Weight
Balance Chamber Fitting: 1/2" M BSP
Working Temperature: -20ºc/+50ºc
Urea
£412.36
F00755160 Piusi Ocio Fuel Tank Level Gauge 230v - 4-20ma Reading Type: 0-100%/mm/inches/litres/gal
Tank Height (mm) - 600-4000
Capillary Length (m) - 10
Capillary Type - 6 x 4 Rilsan PA12
Brass Balance Chamber Weight
Balance Chamber Fitting: 1/2" M BSP
Max Working Temperature: -20ºc/+50ºc
Diesel, water, windscreen and oil if additional oil kit is purchased
£418.44

Accessories

Code Accessory Price (excl VAT)
F00755S20 Ocio Desk - 8 - Multi Tank
£1,104.52
F00755S00 Ocio Desk - 4 - Multi Tank
£835.88
F00755S10 Ocio Desk - Single Tank
£477.68
F12939000 Ocio Oil Kit - For oil up to 2000cSt
£35.80
F00755S30 Ocio Desk - 12 - Multi Tank
£1,368.96
F00755G30 Ocio GSM Quad Band
£1,102.32
BF2010 1" x 1/2" Brass Bush for Fuel Ocio Gauge
For connecting the balance chamber fitting to a 1" hole
£1.72
BCS1056 1" x 1/2" S/S Bush for AdBlue Ocio Gauge
For connecting the balance chamber fitting to a 1" hole
£3.40
R13386 Ocio Brass Weight - Fuel version
For diesel, water, windscreen and oil if additional oil kit is purchased
£42.84
F15611000 Ocio Stainless Steel Weight - AdBlue version
For AdBlue/Urea/DEF
£38.76
F0075510D Reading Type: 0-100%/mm/inches/litres/gal
Tank Height (mm) - 600-4000
Capillary Length (m) - 10
Capillary Type - 6 x 4 Rilsan PA12
Brass Balance Chamber Weight
Balance Chamber Fitting: 1/2" M BSP
Max Working Temperature: -20ºc/+50ºc
Diesel, water, windscreen and oil if additional oil kit is purchased
£354.24
BC8073 1 1/2" x 1/2" Black Iron Bush for Fuel Ocio Gauge
For connecting the balance chamber fittings to a 1 ½” hole
£2.24
F15610000 Stainless Steel Nut For Stainless Steel Weight
Must be purchased with the stainless steel weight in order to be fitted
£41.72
