Piusi SB325_X Automatic AdBlue™ Nozzle

Piusi SB325_X Automatic AdBlue™ Nozzle
Product Code: F15165000
Availability: In Stock
Prices from: £42.34 (inc VAT)
Ex VAT: £35.28

Delivery

Order total Delivery
Under £30.00 (+VAT) £20.00
Over £30.00 (+VAT) £15.00

Available Options


* Model:

Qty:     - OR -   Add to Wish List
Add to Compare

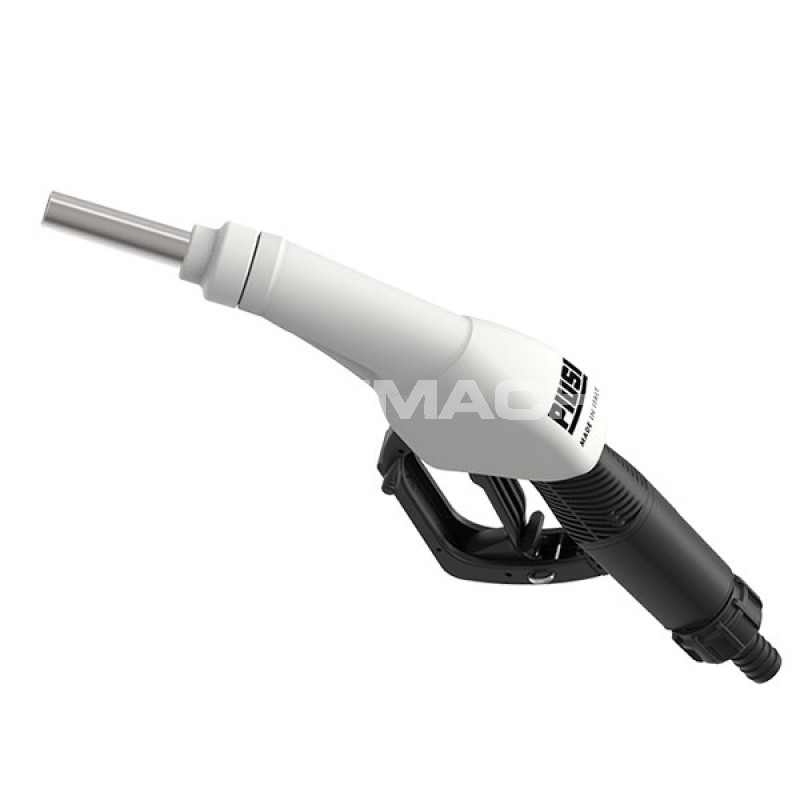

The Piusi SB325_X AdBlue™ Nozzle is a lightweight, plastic automatic nozzle complete with breakway stainless steel spout for use with AdBlue pumping systems. The breakaway spout mechanism means that if the vehicle accidently drives away with the nozzle still positioned in the vehicle's fill point, the spout will detach from the nozzle. This means that damage will be limited to the spout only which can be replaced as a spare part, and the AdBlue pump system connected to the storage tank will not be pulled away.

Constructed of plastic but with a sturdy, stainless steel spout, this Piusi nozzle is a lightweight, cost effective alternative to the completely stainless steel automatic AdBlue™ nozzles on the market. Like these more expensive models, it still reliably shuts off dispensing when the AdBlue tank becomes full to prevent any overspill.

There is also a version of the SB325_X with added magnetic miss-filling spout to prevent AdBlue from being put in the diesel tank. This ensures that the AdBlue™ dispensing nozzle can only release fluid into a fill point that has a partnering magnetic adaptor fitted into it. By having magnetic adaptor fitted in the AdBlue™ fill point only, the AdBlue™ nozzle is unable to dispense into the diesel tank. View the SB325 AdBlue magnetic nozzle here.

Please note: Only for use with AdBlue pumps - not suitable for gravity fed installations.

Features of the SB325_X AdBlue™ Dispensing Nozzle:

  • Automatic AdBlue™ nozzle
  • Breakaway spout mechanism
  • Maximum flow rate: 45ltr Per Min
  • Suitable for urea, water and chemicals
  • Supplied with 3/4" plastic hose barb
  • Fluid viscosity up to 6cSt
  • Removable 3 position stay open latch
  • Replacement spouts available (see accessories)

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Code Product Description Price (excl VAT)
F00618M20 Piusi SB325_X Automatic AdBlue Magnetic Nozzle c/w Breakaway Spout & Nozzle Adaptor Max Flow Rate (lpm) - 45
Max Pressure (Bar) - 3.5
Spout OD (mm) - 19
Inlet - 3/4" Plastic Hose Barb
Magnetic Miss-Filling Spout c/w Breakaway Mechanism
Nozzle Magnetic Adaptor - For when filling without vehicle adaptor (e.g. need to dispense into a drum or container)
AdBlue, Water and Chemicals
£247.88
F00618M40 Piusi SB325_X Automatic AdBlue Magnetic Nozzle c/w Breakaway Spout Max Flow Rate (lpm) - 45
Max Pressure (Bar) - 3.5
Spout OD (mm) - 19
Inlet - 3/4" Plastic Hose Barb
Magnetic Miss-Filling Spout c/w Breakaway Mechanism
AdBlue, Water and Chemicals
£177.60
F00617000 Piusi SB325_X Automatic AdBlue Nozzle c/w Breakaway Spout (Note: This version is NOT magnetic) Max Flow Rate (lpm) - 45
Max Pressure (Bar) - 3.5
Spout OD (mm) - 19
Inlet - 3/4" Plastic Hose Barb
Spout c/w Breakaway Mechanism
AdBlue, Water and Chemicals
£183.96
F15165000 Elafix 40 AdBlue™ Magnetic Tank Adaptor 19mm OD
Compatible to ISO22241-3
Working Temp: -20°C to +85°C
Weight: 65g
For use with AdBlue magnetic nozzles
£35.28

Accessories

Code Accessory Price (excl VAT)
R19173000 Standard Replacement Spout
Standard spout designed as a replacement for when the breakaway mechanism has occurred
£26.64
R19172000 Magnetic Miss-Filling Spout
Prevents the miss-filling of AdBlue into a diesel tank by only releasing fluid into a vehicle tank that has a magnetic adaptor
£56.52
F18400000 Nozzle Override Magnetic Adaptor
Fits over a magnetic spout to allow it to dispense when not in contact with a vehicle tank magnetic adaptor e.g. when filling a smaller container or if you have some vehicles with a tank adaptor and some without.
£22.32
F19174000 Nozzle Magnetic Adaptor + Spout
Kit combination of the magnetic miss-filling spout and the nozzle magnetic adaptor
£100.24
