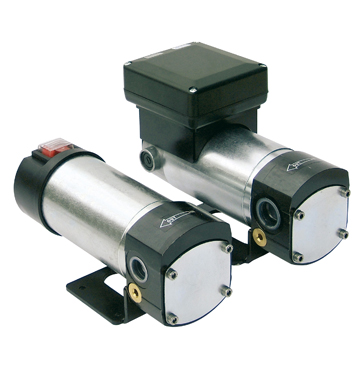

Piusi Viscomat DC 24v & 12v Oil Transfer Pump

The Piusi Viscomat DC gear oil transfer pump is compact in design and easy to install. These oil transfer pumps can be installed as mobile oil pumps on vehicles, or fitted onto battery equipped trolleys where electricity is not available, or a mobile power source is required. The Piusi pump can also be used to carry out oil transfer in yards, ports, and onboard vehicles or boats. There is also a pressure switch version available of these 24v and 12v fuel transfer pumps, which enables the delivery of oil without the inconvenience of having to start or stop the oil transfer pump.

Please refer to our viscosity chart to check whether this pump is suitable for use with your oil.

Features of the Viscomat DC Oil Pump:

Self-priming Viscomat oil transfer pump
Aluminium body & sintered steel gears
Incorporated bypass valve
Flow rate: 4-10ltr per min (depending on model)
Viscosity 50-2000cSt (600cSt for 60/2 models)
Maximum fluid temperature of 70ºc
30 minute duty cycle
½” and ¾” F BSP inlet/outlet
On/off switch or pressure switch versions available
Protection grade: IP55
Available in 12v/24v

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Code	Name	Description	Price
F00309000	Piusi Viscomat DC 120/1 12v Oil Transfer Pump	Max flow (lpm) - 5 12v Pressure (bar)-(psi) 10-140 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt	£331.90 Inc. VAT: £398.28
F00311000	Piusi Viscomat DC 120/1 12v PST Oil Transfer Pump	Pressure Switch Max flow (lpm) - 5 12v Pressure (bar)-(psi) 10-140 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt	£482.64 Inc. VAT: £579.17
F00310000	Piusi Viscomat DC 120/1 24v Oil Transfer Pump	Max flow (lpm) - 5 24v Pressure (bar)-(psi) 10-140 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt	£331.90 Inc. VAT: £398.28
F00311010	Piusi Viscomat DC 120/1 24v PST Oil Transfer Pump	Pressure Switch Max flow (lpm) - 5 24v Pressure (bar)-(psi) 10-140 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt	£482.64 Inc. VAT: £579.17
F00309020	Piusi Viscomat DC 60/1 12v Oil Transfer Pump	Max flow (lpm) - 4 12v Pressure (bar)-(psi) 5-70 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt	£280.60 Inc. VAT: £336.72
F00310020	Piusi Viscomat DC 60/1 24v Oil Transfer Pump	Max flow (lpm) - 4 24v Pressure (bar)-(psi) 5-70 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt	£272.40 Inc. VAT: £326.88
F00309010	Piusi Viscomat DC 60/2 12v Oil Transfer Pump	Max flow (lpm) - 10 12v Pressure (bar)-(psi) 4-57 Duty (mins) - 30 Ports – 3/4” F BSP Viscosity – 50-600 cSt	£331.90 Inc. VAT: £398.28
F00310010	Piusi Viscomat DC 60/2 24v Oil Transfer Pump	Max flow (lpm) - 10 24v Pressure (bar)-(psi) 4-57 Duty (mins) - 30 Ports – 3/4” F BSP Viscosity – 50-600 cSt	£353.27 Inc. VAT: £423.92

Code

Name

Description

Price

Buy

F00309000

Piusi Viscomat DC 120/1 12v Oil Transfer Pump

Max flow (lpm) - 5 12v Pressure (bar)-(psi) 10-140 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt

£331.90

Inc. VAT: £398.28

F00311000

Piusi Viscomat DC 120/1 12v PST Oil Transfer Pump

Pressure Switch Max flow (lpm) - 5 12v Pressure (bar)-(psi) 10-140 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt

£482.64

Inc. VAT: £579.17

F00310000

Piusi Viscomat DC 120/1 24v Oil Transfer Pump

Max flow (lpm) - 5 24v Pressure (bar)-(psi) 10-140 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt

£331.90

Inc. VAT: £398.28

F00311010

Piusi Viscomat DC 120/1 24v PST Oil Transfer Pump

Pressure Switch Max flow (lpm) - 5 24v Pressure (bar)-(psi) 10-140 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt

£482.64

Inc. VAT: £579.17

F00309020

Piusi Viscomat DC 60/1 12v Oil Transfer Pump

Max flow (lpm) - 4 12v Pressure (bar)-(psi) 5-70 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt

£280.60

Inc. VAT: £336.72

F00310020

Piusi Viscomat DC 60/1 24v Oil Transfer Pump

Max flow (lpm) - 4 24v Pressure (bar)-(psi) 5-70 Duty (mins) - 30 Ports – 1/2” F BSP Viscosity – 50-2000 cSt

£272.40

Inc. VAT: £326.88

F00309010

Piusi Viscomat DC 60/2 12v Oil Transfer Pump

Max flow (lpm) - 10 12v Pressure (bar)-(psi) 4-57 Duty (mins) - 30 Ports – 3/4” F BSP Viscosity – 50-600 cSt

£331.90

Inc. VAT: £398.28

F00310010

Piusi Viscomat DC 60/2 24v Oil Transfer Pump

Max flow (lpm) - 10 24v Pressure (bar)-(psi) 4-57 Duty (mins) - 30 Ports – 3/4” F BSP Viscosity – 50-600 cSt

£353.27

Inc. VAT: £423.92
