Piusi Self Service FM Fuel Management System
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743

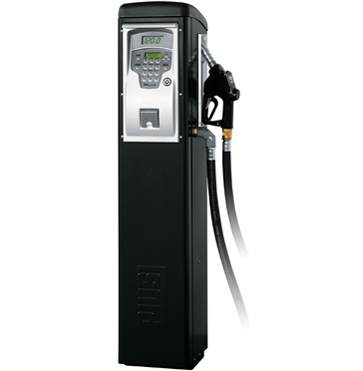

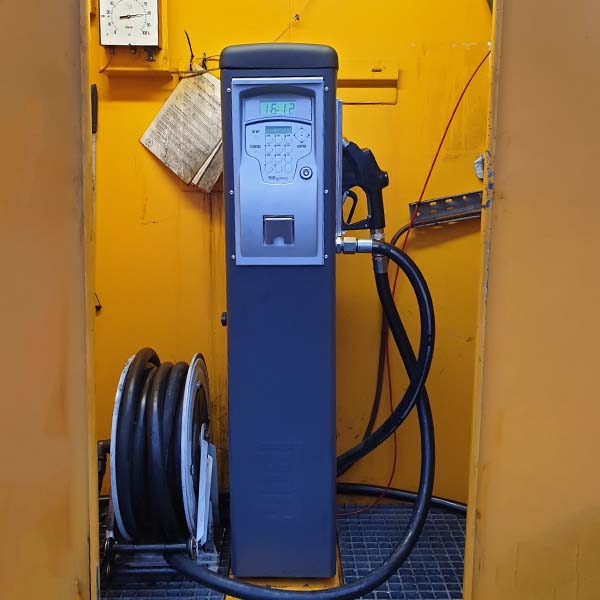

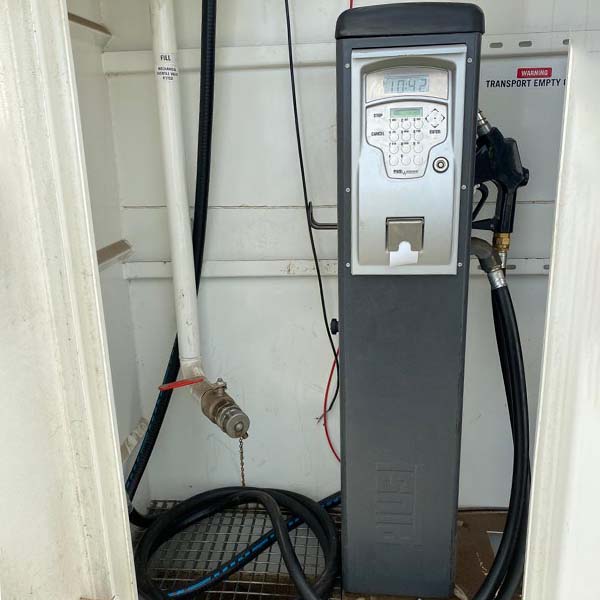

The Piusi Self Service FM Fuel Management System is a modern fuel dispenser, which provides key holders with quick and accurate refuelling. The Piusi fuel monitoring system that comes complete with nozzle holder, diesel transfer pump and electronic meter, records the date, time and amount of fuel dispensed for the last 255 transactions. These diesel fuel management systems also incorporate a local printer that issues tickets at the end of the dispensing operation.
These fleet fuel management systems are able to control up to 120 users as standard, by means of pin code or magnetic data key, ensuring that it is only these users who are able to access the fuel. Although these fuel tank monitoring systems show transaction data on the unit’s screen, the additional Piusi Self Service Management 2018 software package is available, which allows the dispensing data to be exported to and viewed on a local PC.
The Piusi Self Service FM stand-alone fuel management system is available as a floor-mounted unit or in a mini version, which can be mounted onto a wall or the bunded fuel tank, and there are options available with a built-in Ocio level gauge and water filter.
Please note: If you have an existing system and are looking to buy replacement keys, make sure you know whether your unit is a green or yellow key system and select from the accessories table.
Features of the Piusi Self Service FM Fuel Monitoring System:
- Controls up to 120 users (depending on model)
- Complete fuel dispenser
- Limits pump access to users via pin code or key (if purchased)
- Records transaction data such as user, date, time & QTY
- Facility to record vehicle reg number & odometer readings
- Pump start/stop & pre-set dispense features
- Local memory of 255 transactions
- K600 Flow Meter
- Ticket printer & integrated Ocio gauge
- Automatic nozzle and nozzle holster
- 4m x 1" delivery hose
- Versions available with water filter
- Optional software to download data to a Windows PC
- Available in 230v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Available Options
CTS4000
Inc. VAT: £610.03
Self Service 2018 Download Software - Key Reader c/w Yellow Keys Software Type: Download Data Transfer: Key Reader User Keys: 10 Manager Keys: 1
CTS4002
Inc. VAT: £698.83
Self Service 2018 USB Software - Key Reader c/w Yellow Keys Software Type: USB Data Transfer: Key Reader User Keys: 10 Manager Keys: 1
Piusi Self Service 100 FM Fuel Management Unit + Filter + Prn 120 User
Inc. VAT: £3,769.30
Max Flow (lpm) - 85 230v 120 Users E120 Diesel Transfer Pump Nozzle Type - Auto 120 Flow Meter - K600 Ticket Printer Integrated OCIO 1 1/2" F BSP Inlet Water Filter - 30micron
Piusi Self Service 100 FM Fuel Management Unit Mini 120 User
Inc. VAT: £3,605.28
Max Flow (lpm) - 85 230v 120 Users E120 Diesel Transfer Pump Nozzle Type - Auto 120 Flow Meter - K600 Ticket Printer Integrated OCIO 1 1/2" F BSP Inlet For tank mounting
Piusi Self Service 70 FM Fuel Management Unit + Filter + Prn 120 User
Inc. VAT: £3,779.76
Max Flow (lpm) - 70 230v 120 Users Panther 72 Diesel Transfer Pump Nozzle Type - Auto 80 Flow Meter - K600 Ticket Printer Integrated OCIO 1 1/2" F BSP Inlet Water Filter - 30micron
Piusi Self Service 70 FM Fuel Management Unit Mini + Prn 120 User
Inc. VAT: £3,420.19
Max Flow (lpm) - 70 230v 120 Users Panther 72 Diesel Transfer Pump Nozzle Type - Auto 80 Flow Meter - K600 Ticket Printer Integrated OCIO 1 1/2" F BSP Inlet For tank mounting
R12496
Inc. VAT: £67.44
Red Manager Key
R15904000
Inc. VAT: £199.56
10 Yellow User Keys
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| CTS4000 | CTS4000 | Self Service 2018 Download Software - Key Reader c/w Yellow Keys Software Type: Download Data Transfer: Key Reader User Keys: 10 Manager Keys: 1 |
£508.36
Inc. VAT: £610.03 |
|
| CTS4002 | CTS4002 | Self Service 2018 USB Software - Key Reader c/w Yellow Keys Software Type: USB Data Transfer: Key Reader User Keys: 10 Manager Keys: 1 |
£582.36
Inc. VAT: £698.83 |
|
| 74200B | Piusi Self Service 100 FM Fuel Management Unit + Filter + Prn 120 User | Max Flow (lpm) - 85 230v 120 Users E120 Diesel Transfer Pump Nozzle Type - Auto 120 Flow Meter - K600 Ticket Printer Integrated OCIO 1 1/2" F BSP Inlet Water Filter - 30micron |
£3,141.08
Inc. VAT: £3,769.30 |
|
| 742B00 | Piusi Self Service 100 FM Fuel Management Unit Mini 120 User | Max Flow (lpm) - 85 230v 120 Users E120 Diesel Transfer Pump Nozzle Type - Auto 120 Flow Meter - K600 Ticket Printer Integrated OCIO 1 1/2" F BSP Inlet For tank mounting |
£3,004.40
Inc. VAT: £3,605.28 |
|
| 73900B | Piusi Self Service 70 FM Fuel Management Unit + Filter + Prn 120 User | Max Flow (lpm) - 70 230v 120 Users Panther 72 Diesel Transfer Pump Nozzle Type - Auto 80 Flow Meter - K600 Ticket Printer Integrated OCIO 1 1/2" F BSP Inlet Water Filter - 30micron |
£3,149.80
Inc. VAT: £3,779.76 |
|
| 739B00 | Piusi Self Service 70 FM Fuel Management Unit Mini + Prn 120 User | Max Flow (lpm) - 70 230v 120 Users Panther 72 Diesel Transfer Pump Nozzle Type - Auto 80 Flow Meter - K600 Ticket Printer Integrated OCIO 1 1/2" F BSP Inlet For tank mounting |
£2,850.16
Inc. VAT: £3,420.19 |
|
| R12496 | R12496 | Red Manager Key |
£56.20
Inc. VAT: £67.44 |
|
| R15904000 | R15904000 | 10 Yellow User Keys |
£166.30
Inc. VAT: £199.56 |
