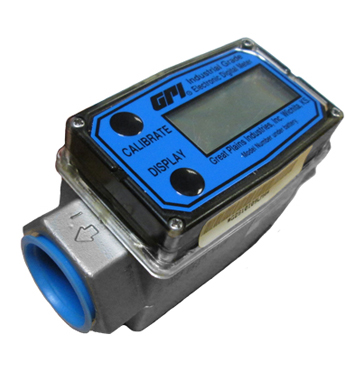

The GPI Turbine Digital Fuel Flow Meter is a small and reliable fuel counter meter, with an easy to read electronic display for indicating to the user how much of the fluid has been dispensed. Being so compact, the GPI meter is designed to be installed either inline within the pipework or at by the nozzle for the user’s easiest convenience. These diesel fuel flow meters benefit from a rugged housing and sealed electronic board making it a durable option for use in many conditions.
There are a number of versions of this fuel flow meter including diesel flow meters as well as options for chemicals, alcohol and water.
Features of the GPI Chemical, Water & Diesel Flow Meter:
- Digital fuel flow meter
- Flow rate: 10-100
- Accuracy (dependent on model - see table)
- Nylon turbine system
- Working temperature -10°c/+50°c
- Single channel reed switch
- LCD electronic display (2 x AAA batteries)
- 4 digit totaliser
- Versions for diesel, chemicals, alcohol and water
Available Options
1" GPI Flow Meter for Water
Inc. VAT: £407.58
Flow Rate (lpm) - 10-100 Max Pressure (bar) - 20.7 Ports - 1" F BSP 0.1-999.9 4 Digit Totaliser Accuracy +/-5% Operating Temp -10°C/+50°C Water
1" GPI Fuel Flow Meter for Diesel
Inc. VAT: £368.18
Flow Rate (lpm) - 10-100 Max Pressure (bar) - 20.7 Ports - 1" F BSP 0.1-999.9 4 Digit Totaliser Operating Temp -10°C/+50°C Accuracy +/-5% Diesel, B100
1" GPI Stainless Steel Flow Meter for Chemicals & Alcohol
Inc. VAT: £1,988.20
Flow Rate (lpm) - 19-190 Max Pressure (bar) - 20.7 Ports - 1" F BSP 0.1-999.9 4 Digit Totaliser Accuracy +/-1% Operating Temp -10°C/+50°C Chemicals & Alcohol IP Rating: IP65
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| OE0058 | 1" GPI Flow Meter for Water | Flow Rate (lpm) - 10-100 Max Pressure (bar) - 20.7 Ports - 1" F BSP 0.1-999.9 4 Digit Totaliser Accuracy +/-5% Operating Temp -10°C/+50°C Water |
£339.65
Inc. VAT: £407.58 |
|
| OE0056 | 1" GPI Fuel Flow Meter for Diesel | Flow Rate (lpm) - 10-100 Max Pressure (bar) - 20.7 Ports - 1" F BSP 0.1-999.9 4 Digit Totaliser Operating Temp -10°C/+50°C Accuracy +/-5% Diesel, B100 |
£306.82
Inc. VAT: £368.18 |
|
| OE0055 | 1" GPI Stainless Steel Flow Meter for Chemicals & Alcohol | Flow Rate (lpm) - 19-190 Max Pressure (bar) - 20.7 Ports - 1" F BSP 0.1-999.9 4 Digit Totaliser Accuracy +/-1% Operating Temp -10°C/+50°C Chemicals & Alcohol IP Rating: IP65 |
£1,656.83
Inc. VAT: £1,988.20 |
